What Is a Three-Axis System
Basics of Three-Axis CNC Systems
What Is a Three-Axis System?
A three-axis system is the most fundamental and core motion control method in modern CNC machining equipment. It refers to a machine’s ability to move simultaneously along the X, Y, and Z axes. Driven by servo motors, the cutting tool or workpiece can precisely move in 3D space to perform various cutting, engraving, or drilling operations.
Components of a Three-Axis CNC System
A complete three-axis system typically consists of the following key parts:

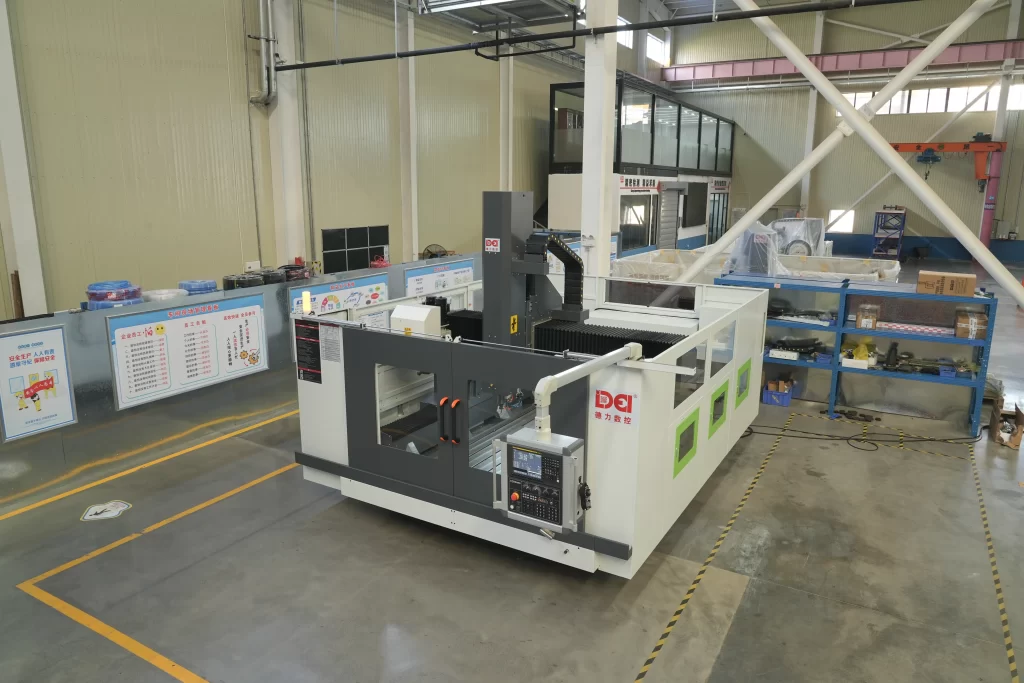

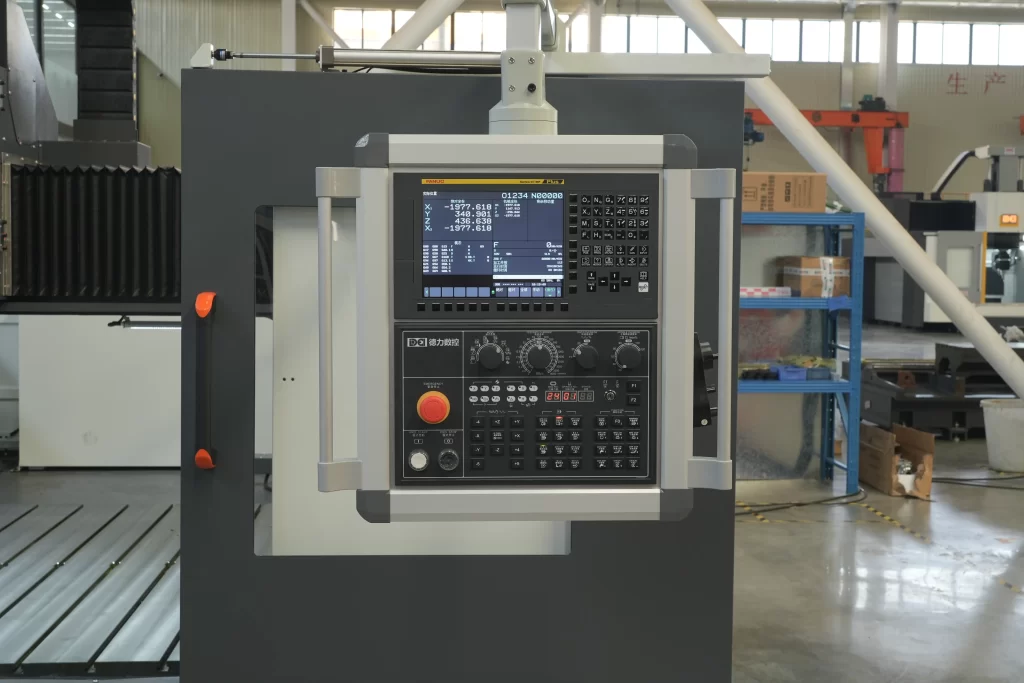

- Control System (CNC Controller): Receives G-code and outputs control signals;
- Drive Motors: Stepper or servo motors that control movement along the three axes;
- Transmission Mechanism: Components such as ball screws and linear guides to achieve high-precision motion;

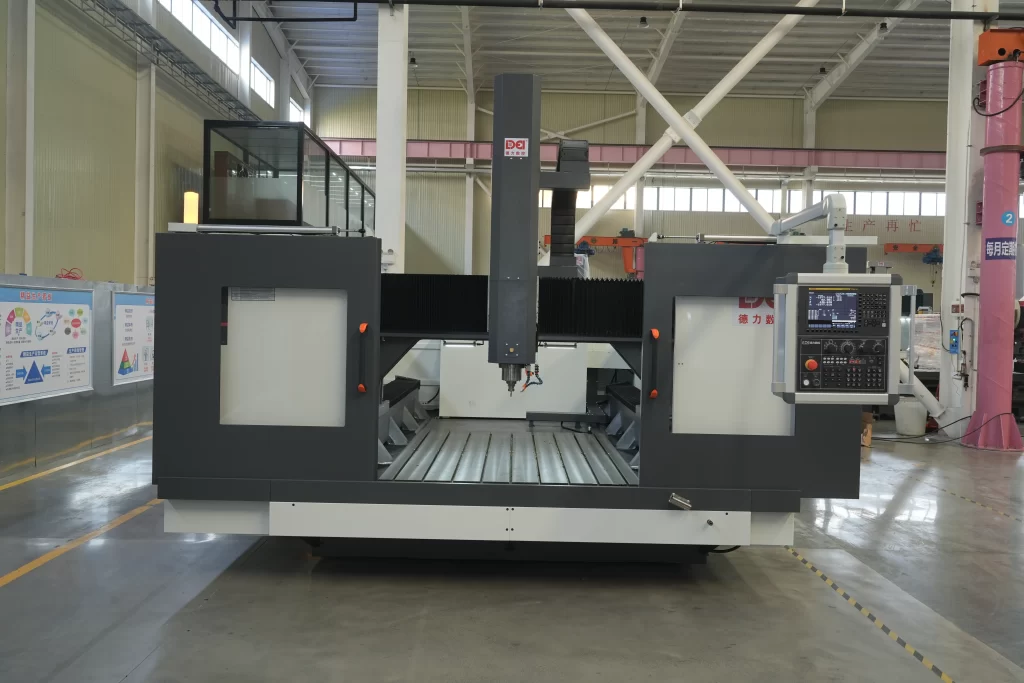

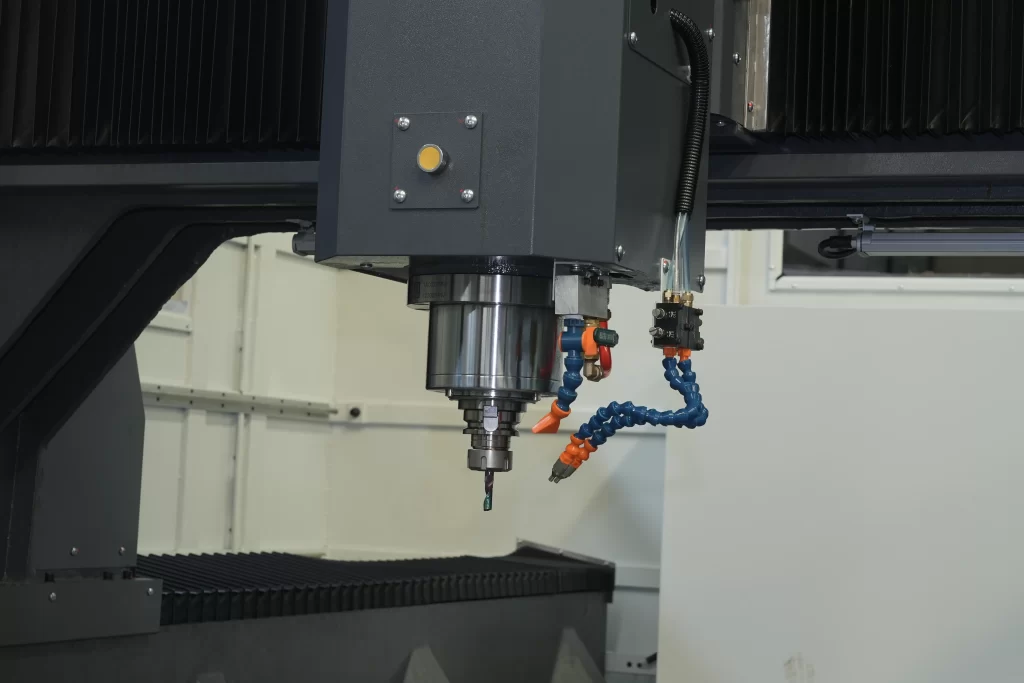

- Spindle Motor: Drives the cutting tool rotation for machining tasks;
- Human-Machine Interface (HMI): Allows parameter setting, data reading, and manual operation;
- CAM Software: Converts design files (CAD) into machining paths (G-code) that the machine can follow.
Functions and Applications of Three-Axis Systems
What Machining Tasks Can a Three-Axis CNC Handle?
Three-axis CNC machines are well suited for most common 2D and 2.5D machining projects. Typical machining types include:
- Surface Milling: Such as shaping part surfaces and end-face machining;
- Drilling and Tapping: Vertical hole drilling and threading on metals, plastics, etc.;
- Engraving and Relief Carving: Ideal for 2.5D pattern engraving like nameplates or mold text;
- Edge Processing: Including chamfering, slotting, and trimming of structural contours.
Relationship Between 2.5D Machining and Three-Axis Systems
2.5D machining means the tool can move freely in the X/Y plane while performing layered cuts along the Z-axis. This is commonly used for relief carving, signage, and simple 3D features like grooves. Three-axis CNC systems excel in these tasks.
Industries Best Suited for Three-Axis CNC
Thanks to their maturity, stability, and cost-effectiveness, three-axis systems are widely used in:
- Mold Making: Plastic molds, metal stamping dies, aluminum molds;
- Mechanical Part Fabrication: Aluminum parts, stainless steel components, precision hardware;
- Electronics: PCB drilling, phone cases, panel cutting;
- Woodworking and Furniture: Panel furniture, wood door engraving, artistic panel shaping;
- Education and Research: Training platforms and CNC teaching demonstrations.
Materials and Performance Selection for Three-Axis CNC Systems
Types of Materials That Can Be Processed
Three-axis CNC machines are suitable for a variety of metal and non-metal materials, including but not limited to:
- Metals: Aluminum, copper, stainless steel, alloy steels;
- Non-Metals: Plastics, acrylic, nylon, phenolic boards;
- Wood: MDF, plywood, solid wood boards;
- Composites: Carbon fiber sheets, epoxy resin boards.
Key Performance Parameters Affecting Machining Quality
When selecting a three-axis system, focus on these critical specs:
- Repeat Positioning Accuracy: Determines the ability to perform high-precision machining;
- Maximum Travel Range: Must match the size of the workpieces;
- Spindle Power and Speed: Affects cutting efficiency and tool compatibility;
- Feed Rate and Acceleration: Impacts machining speed and surface finish quality;
- Closed-Loop Control: Closed-loop systems ensure better positioning accuracy and prevent loss of steps.
How to Choose a Three-Axis CNC System?
Factors to Consider When Selecting
When purchasing a three-axis CNC machine, evaluate these aspects comprehensively:
- Budget: Entry-level machines are suitable for prototyping and education, while industrial-grade units support long-term production;
- Application Type: Different cutting, engraving, and drilling tasks require varying spindle and structural features;
- Software Compatibility: Whether the control system supports mainstream CAD/CAM software;
- Maintenance and Support: Availability of technical support and spare parts;
- Expandability: Support for future upgrades like tool changers, a fourth axis, or automatic loading/unloading modules.
Recommended CNC Control Systems
When selecting a CNC control system, companies should consider machining requirements, user experience, and budget. Leading options in the market include Siemens and FANUC, which offer a full range of solutions—from entry-level to advanced automation—well suited for various manufacturing applications.
Siemens is known for its powerful openness and multi-axis control, ideal for complex part machining. FANUC is favored for its stability, reliability, and extensive global service network.
DELI CNC machines are highly compatible with major CNC systems, including Siemens and FANUC. For users prioritizing efficient system-machine integration, pairing DELI equipment with well-established global CNC platforms ensures optimized performance and workflow responsiveness.
Summary and Conclusion
The three-axis CNC system is an unsung hero in manufacturing, delivering versatile machining capabilities from flat cutting to 3D part shaping at an affordable price. It’s an ideal choice for small businesses and short-run projects, offering micron-level precision for aerospace panels, automotive molds, or prototype models, all at a fraction of the cost of multi-axis machines.
With intuitive programming interfaces and CAM software like Fusion 360 or Mastercam, tool paths can be optimized and machining simulations help prevent errors. Dedicated fixtures significantly reduce setup times. By customizing tooling and processes according to material properties and part complexity, you can fully unlock the potential of three-axis systems and make them the most reliable workhorse in your shop.
