How to Eliminate Burrs in Aluminum CNC Machining

Why Burrs Are a Critical Challenge in Aluminum CNC Machining

Aluminum CNC machining is a cornerstone of modern precision manufacturing — widely used in electric vehicles, aerospace, rail transit, 5G infrastructure, and high-end furniture. But despite aluminum’s excellent machinability, its high ductility and low yield strength make it notoriously prone to burrs: tiny, unwanted protrusions or tears along part edges.

These seemingly minor imperfections can cause serious downstream issues: failed assemblies, compromised seals, poor surface finishes after anodizing or painting — even full batch rejections. Studies show that unoptimized aluminum machining can produce burrs up to 0.2–0.5 mm tall — far exceeding typical assembly tolerances (≤0.1 mm). Worse, aluminum’s tendency to “stick” to cutting tools under heat and pressure forms built-up edge (BUE), which alters tool geometry and accelerates tearing.

Eliminating burrs isn’t about post-machining deburring — it’s about designing the entire process to prevent them from forming in the first place. This guide breaks down the root causes, proven mitigation strategies, and — crucially — how the right CNC machine platform can make all the difference.

The Root Causes of Burrs in Aluminum CNC Machining

Burrs don’t appear by accident. They’re the symptom of a system out of balance — between material behavior, tooling, machine rigidity, and cutting parameters.

Material Behavior: Soft, Sticky, and Prone to Tear

Aluminum alloys (FCC crystal structure) deform plastically rather than fracture cleanly. During cutting, material doesn’t shear cleanly — it shear-slides, then tears away at the exit point, creating curled or feathered burrs.

Add to this aluminum’s chemical reactivity: under high heat and pressure, it bonds with cobalt in carbide tools, forming built-up edge (BUE). This sticky layer changes the effective rake angle, increases friction, and turns your cutting tool into a scraper — worsening burr formation.

Not all aluminum is equal. 6061-T6 (tensile strength ~310 MPa) resists burrs better than pure 1100 or 3003 aluminum (yield strength only 80–120 MPa). In identical conditions, the latter can produce burrs 40% taller.

Tooling: Geometry Matters More Than You Think

Your tool isn’t just a cutter — it’s the first line of defense against burrs.

• Small or negative rake angles increase cutting forces, forcing material to compress instead of shear.
• Insufficient relief angle causes the flank to rub against the finished surface, pushing edges upward.
• Too-sharp edges chip easily; too-dull edges push material instead of cutting it.
• Unpolished flutes create microscopic “sticky zones” where aluminum chips cling and re-cut.

A study by Fraunhofer IPT showed that increasing the edge radius from 8 μm to 25 μm raised burr height by 158% — proving that tool condition alone can make or break surface quality.

Cutting Parameters: The Balance Between Speed and Control

Even the best tool fails with wrong settings.

• Low spindle speed + high feed → thick, uneven chips → tearing.
• Excessive feed rate → exceeds material fracture limit → “chasing” burrs.
• Deep axial cuts (>0.5 × tool diameter) → side forces distort thin walls.
• Wide stepover → leaves “islands” of material that get torn during the next pass.

NIST data confirms: when axial depth exceeds 1.5 mm and feed exceeds 0.2 mm/rev, burr occurrence spikes by nearly 3x.

Machine Rigidity: Vibration Is the Silent Killer

No amount of perfect tooling or parameters can compensate for a shaky machine.

• Spindle runout >5 μm → elliptical tool path → cyclic impact.
• Poor workholding → thin-wall parts deflect → edges get pulled.
• Loose guideways or worn ball screws → inconsistent feed → chatter.

High-speed video analysis reveals: during resonance, tools can lose contact 2–3 times per revolution — then slam back into the material. Each impact creates a fresh burr.

Coolant & Lubrication: Heat Is the Enemy

Coolant isn’t just for cooling — it’s for lubrication, chip evacuation, and preventing aluminum adhesion.

Common mistakes:

• Using compressed air only → no lubrication, no heat control.
• Low-pressure coolant (<3 bar) → can’t penetrate high-speed cut zones.
• MQL misaligned → oil mist misses the cutting zone.

When interface temperatures hit 400°C+, aluminum softens, welds to the tool, and gets pulled into long, hair-like burrs on exit.

Optimizing Tooling: The First Line of Defense

Prevention beats correction. Start with the right tool.

High Helix End Mills (45°–60°)

A high helix angle (45°–60°) creates a smoother, more continuous cut. It lifts chips upward and out of the cut, reducing re-cutting and surface drag. Testing shows a 55° helix tool reduces burr height by 35% and improves surface roughness (Ra) by 0.4 μm compared to a 30° tool.

Polished Flutes & Advanced Coatings

Polish flutes to Ra < 0.1 μm — a mirror finish prevents aluminum from sticking. Pair this with TiAlN or AlCrN coatings. These form a hard, heat-resistant aluminum oxide layer that isolates the tool from the workpiece.

Sandvik testing confirms: AlCrN-coated tools last 2.3x longer in 7075 aluminum machining — and burr growth drops by 60%.

Variable Pitch / Uneven Tooth Spacing

Traditional equal-spaced tools create repetitive vibration frequencies. Variable pitch tools disrupt this pattern — reducing chatter, especially critical for deep cavities, thin walls, or long overhangs.

Edge Preparation: A Little Dullness Is Better Than Too Sharp

A razor-sharp edge may seem ideal — until it chips. Instead, apply a micro-hone (0.01–0.03 mm flat) to the cutting edge. This adds strength without sacrificing performance.

Osaka University found: tools with a 0.02 mm hone produced 22% less burr height than fully sharp ones — and maintained consistent performance over their full life.

Tool Life Management: Replace Before It Fails

Don’t wait for failure. Monitor for these signs:

• Burrs suddenly increase in size
• Surface develops “fish-scale” patterns
• Spindle load climbs steadily
• Cutting sound shifts from crisp to dull

Set a VB wear limit of 0.2 mm as your replacement threshold. Track material removal volume (cm³) — not just hours — for true predictive maintenance.

Precision Parameter Tuning: Where Science Meets Craft

Parameters turn theory into results.

Spindle Speed & Feed Rate: The Sweet Spot

Aluminum thrives under High-Speed Machining (HSM). Target:

• Spindle speed: 15,000–25,000 RPM
• Feed per tooth (fz): 0.10–0.18 mm/tooth (use lower values for finish passes)

Example: For a 10 mm, 4-flute end mill at Vc = 800 m/min → n = 25,500 RPM. With fz = 0.12 mm/tooth → feed rate = 12,240 mm/min.

At this setting, each chip is only 0.12 mm thick — thin enough to form clean, curled chips, not torn fragments.

Depth of Cut & Stepover: Avoid the “Island Effect”

• Axial depth (ap) ≤ 50% of tool diameter
• Radial width (ae) ≤ 10% of tool diameter (for finishing)
• Stepover ≤ 70% of tool diameter

Too-wide stepover leaves material “islands” between passes — and the next pass rips them off, creating bridge burrs.

Coolant Strategy: Precision Over Volume

• Roughing: Flood coolant (≥20 L/min, ≥5 bar pressure)
• Finishing: MQL (50–100 ml/h) — cleaner, greener, more precise
• Deep holes: Use internal coolant tools — deliver fluid directly to the cutting zone

Avoid chlorinated or sulfurized oils — they corrode aluminum and ruin anodizing.

Toolpath Strategies: Smarter Moves, Cleaner Edges

• Trochoidal milling: Keep chip load constant — ideal for narrow slots
• Arc-in / arc-out: Smooth entry/exit — no sudden load spikes
• Climb milling: Push cutting force into the fixture — improves stability

Advanced Techniques: Engineering Burrs Out of the Process

High-Speed Machining (HSM): Cut Fast, Cut Clean

HSM doesn’t just speed things up — it changes the physics. At 20,000+ RPM, heat is carried away by the chip (up to 80%), not absorbed by the part. Result? Less thermal softening → less tearing → fewer burrs. Studies show 30–50% burr reduction under HSM.

Cryogenic Cooling: Make Aluminum Brittle on Purpose

Cool the cutting zone to -50°C using liquid nitrogen or cold air. This makes aluminum behave more like a brittle material — it fractures cleanly instead of stretching.

RWTH Aachen University demonstrated: machining 2024 aluminum at -70°C reduced burr height by 70% — and improved surface residual stress for better fatigue life.

Dry Machining: When Less Is More

In clean, automated environments, dry machining with advanced coatings and rigid machines is viable. It eliminates coolant disposal, reduces maintenance, and simplifies workflows — if your machine is up to the task.

Post-Machining Deburring: The Safety Net

Even the best process may leave micro-burrs. Here’s how to handle them.

Manual Deburring: For Precision, Not Volume

Use:

• Diamond files — for hardened anodized surfaces
• Nylon abrasive sticks — gentle, non-marring, great for blind holes
• Pneumatic deburring pens — flexible tips for complex internal features

Best for prototypes, low-volume, or intricate geometries.

Mechanical Deburring: For High Volume

• Vibratory finishing — tumble parts with ceramic or resin media
• Centrifugal barrel finishing — faster, more aggressive, ideal for small parts
• Magnetic finishing — uses magnetic particles to reach internal threads and blind holes

Always use non-metallic media to avoid contamination.

Specialized Deburring: For Critical Applications

• Thermal Energy Deburring (TED) — ignite hydrogen/oxygen mix to burn off burrs — perfect for complex internal passages
• Electrochemical Deburring (ECD) — selectively dissolve burrs with electrolyte — ±5 μm precision, no stress
• Laser Deburring — non-contact, localized melting — ideal for microelectronics and medical components

These are investments — but essential for aerospace, medical, and EV battery components.

Quality Control: Measure, Monitor, Improve

Inspection Methods

• Optical magnification (10x–50x) — spot-check edge integrity
• Surface profilometer — measure Ra; target ≤0.8 μm for sealing or mating surfaces
• CMM or blue-light scanning — confirm dimensions aren’t skewed by burr buildup

Acceptance Criteria (Recommended)

• Visible burr height ≤ 0.1 mm
• No filamentous or fractured burrs
• Zero burrs on sealing surfaces, weld prep zones, and assembly interfaces

Continuous Improvement

Implement SPC (Statistical Process Control) charts. Track burr frequency as a KPI. Use PDCA (Plan-Do-Check-Act) cycles to refine parameters, tooling, and fixturing over time.

Conclusion: Burrs Are a System Problem — Solve Them at the Source

Eliminating burrs in aluminum CNC machining isn’t about better deburring tools or faster sanding. It’s about designing a system where burrs simply can’t form.

You’ve optimized your tooling. You’ve tuned your parameters. You’ve controlled your coolant. But if your machine vibrates, deflects, or lacks rigidity — you’re fighting an uphill battle.

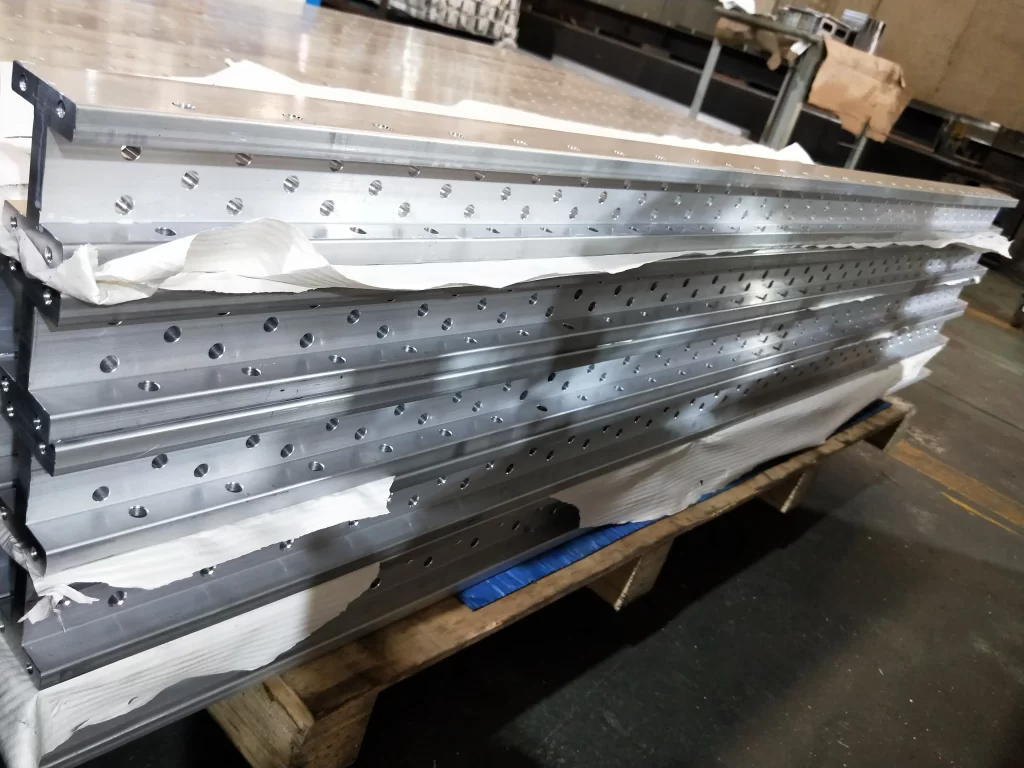

For critical applications — EV battery trays, long aluminum extrusions, aerospace structural components — the machine itself is the foundation. A machine that can’t hold tolerance under load? No amount of process tweaking will fix that.

DELICNC, a state-level high-tech enterprise since 2008, has spent 16 years building CNC machining centers engineered for exactly this challenge. Our CNC Gantry Machining Centers are designed for long aluminum parts and large-format components — with:

• Ultra-rigid gantry frame to suppress vibration over long spans
• Precision linear guides and servo systems with ±0.005 mm repeatability
• Integrated coolant and chip removal systems built for 24/7 production

Used by manufacturers in automotive, EV, rail, and 5G industries, our machines don’t just cut aluminum — they consistently deliver burr-free, high-precision parts, shift after shift.
