How to Choose the Right CNC Machine for Aluminum Profiles
In modern manufacturing, industrial aluminum profiles have become a critical material across automation systems, rail transportation, renewable energy, and structural applications. From photovoltaic racking beams to robotic guide rails and battery tray frames, the machining demands for aluminum profiles have evolved far beyond simple drilling — now requiring multi-axis, high-precision, and fully automated processing.
Traditional methods like manual marking, bench drilling, or semi-automatic milling can no longer meet today’s factory requirements for throughput, consistency, and yield. Choosing the right CNC machine is no longer just a purchasing decision — it’s a strategic move that determines your production capacity, delivery reliability, and long-term competitiveness.

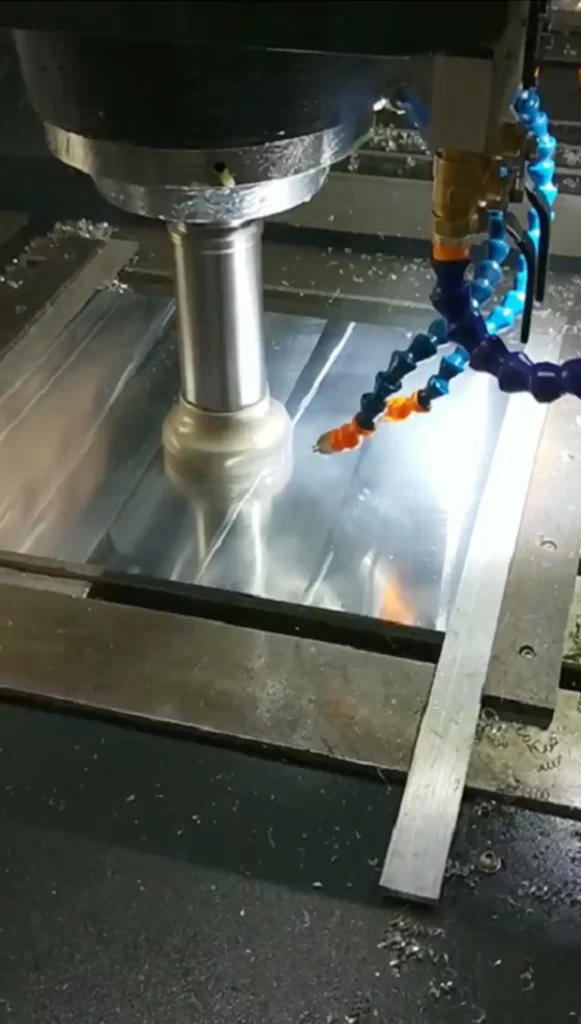

Vertical Machining Centers: The Go-To Solution for Small-to-Mid Volume, High-Variety Production
For manufacturers producing 50–200 parts per day with frequent changeovers and diverse part geometries, a vertical machining center (VMC) offers the best balance of flexibility, precision, and cost efficiency.
With its vertically oriented spindle and horizontal worktable, the VMC excels at flat milling, contouring, drilling, and tapping — the most common operations on aluminum profiles such as 6061-T6 or 6063-T5. Using high-speed machining principles, operators typically run spindle speeds between 12,000 and 18,000 rpm with feed rates of 0.1–0.15 mm/tooth, achieving cutting speeds of 800–1,100 m/min. This “light, fast cut” approach minimizes built-up edge and delivers surface finishes consistently below Ra 1.6 μm.
Modern VMCs come equipped with 24–30-tool automatic tool changers (ATC), enabling multiple operations — milling, drilling, tapping — to be completed in a single setup. Many models also support quick die change systems (QDC), reducing changeover time to under five minutes and boosting line flexibility.
The machine’s closed-loop feedback system, often paired with linear encoders, ensures repeatability better than ±0.005 mm — meeting ISO 2768-mK tolerances for precision components. For brackets, enclosures, and connector housings, this level of consistency is non-negotiable.
- CNC milling machine is the most widely deployed platform for aluminum profile machining.
- CNC machining of aluminum extrusions depends heavily on optimized toolpaths, coolant delivery, and spindle stability.
- Precision CNC machining here delivers the dimensional repeatability that downstream assembly demands.
Limitations include:
- Restricted Z-axis travel (typically under 600 mm), making it unsuitable for tall components
- Deep hole drilling requires high-pressure coolant to prevent chip clogging
- Multi-surface parts still require re-fixturing — introducing cumulative positioning error
Ideal for: Automation brackets, control housings, mounting plates, small frames, and other mid-sized, multi-feature parts.
Horizontal Machining Centers: The Backbone of High-Volume, High-Consistency Production
When your daily output exceeds 500 parts and dimensional consistency is critical — such as in battery trays, rail components, or heavy-duty enclosures — a horizontal machining center (HMC) becomes your most reliable asset.
The HMC’s horizontally mounted spindle and rotary table allow four- or five-sided machining in a single setup. This eliminates the need for re-fixturing and removes the risk of cumulative positioning error that plagues multi-operation workflows.
In real-world applications — like large-scale battery tray production — HMCs reduce part variation (CV) to under 0.3%, compared to 0.8–1.2% on VMCs. Paired with a dual-pallet exchange system, changeover times drop below 30 seconds, enabling 90%+ machine uptime and true blackout production.
High-end models feature box-in-box construction for superior rigidity, linear motor drives for 60 m/min rapid traverse, and 1.2g acceleration — dramatically reducing non-cutting time.
- Multi-axis aluminum machining here delivers true one-setup, multi-face results — the gold standard for complex structural parts.
- Industrial aluminum machining center is the term used by Tier 1 suppliers in automotive and rail for their most critical lines.
- Precision aluminum part fabrication becomes repeatable and scalable — critical for meeting tight assembly tolerances.
Drawbacks include:
- Larger footprint requirements
- Higher upfront cost (1.5–2× that of a VMC)
- Spindle overhang demands regular calibration to maintain perpendicularity
Ideal for: Battery trays, rail vehicle frames, large automation modules, industrial enclosures, and wind turbine components requiring multi-face precision.

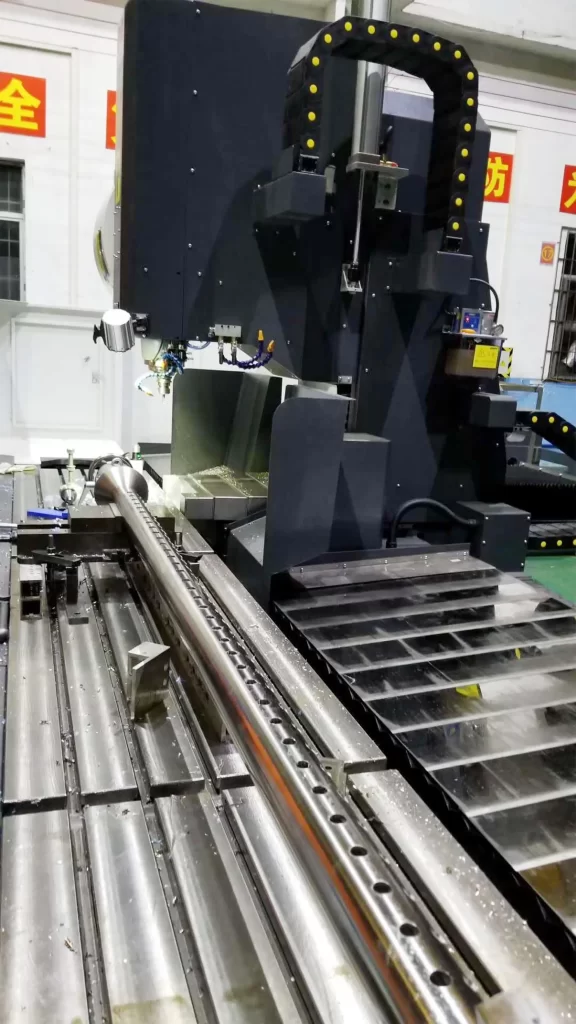

Gantry CNC Machines: The Only Solution for Oversized Aluminum Profiles
When processing aluminum profiles longer than 4 meters — such as solar racking beams, EV chassis rails, or architectural curtain wall frames — conventional machines simply cannot reach.
Enter the gantry CNC machine. With its overhead bridge design, it offers travel ranges up to 12 meters in X, 5 meters in Y, and 800 mm in Z — capable of machining a full 6-meter extrusion in one setup.
To maintain rigidity and accuracy over such distances, high-end gantries use linear motor drives instead of ball screws, delivering 1.5g acceleration and 60 m/min rapids. Integrated thermal compensation systems monitor bed expansion in real time, automatically adjusting coordinates to hold ±0.02 mm accuracy — even during 12-hour runs.
In one case, a manufacturer switched from segmented machining (three setups, ±0.3 mm cumulative error) to a single gantry operation. Result? Hole alignment accuracy improved to 0.07 mm — raising assembly yield from 82% to 99%.
- CNC gantry router is the industry term for these large-format systems.
- Aluminum profile cutting machine here doesn’t just drill — it cuts, mills, and drills in one integrated pass.
- High speed aluminum milling on a gantry enables aggressive material removal without sacrificing surface quality.
Critical infrastructure requirements:
- Heavy-duty concrete foundation (minimum 800 mm thick)
- Three-phase power (100+ kW)
- Clean compressed air at 0.6 MPa, oil content <0.01 ppm
These aren’t optional — they’re prerequisites. But for oversized profiles, a gantry is the only viable solution.
Ideal for: Solar mounting beams, EV chassis rails, architectural framing, warehouse racking, and custom structural components.
Dedicated Aluminum Profile Machining Centers: Efficiency for High-Volume Standardized Parts
Many manufacturers focus on standardized aluminum profiles — 20, 40, or 80 series extrusions used in shelving, automation guides, solar cross-members, and display racks. These parts are high-volume, low-variation, and repetitive — making them perfect for purpose-built automation.
A dedicated aluminum profile machining center integrates cutting, drilling, tapping, and chamfering into a single automated line. A typical workflow:
- Vacuum-fed extrusion is loaded automatically
- Laser positioning ensures ±0.05 mm accuracy
- Servo-controlled saw cuts to length with ±0.3° angle precision
- Multi-axis drilling head completes 8–16 holes simultaneously
- Thread tapping unit finishes M6–M12 threads
- Finished part is unloaded onto a conveyor
No human intervention. One part processed in 60–90 seconds — five times faster than traditional methods. All features are machined from a single datum, eliminating cumulative positioning error.
- Aluminum drilling machine has evolved into synchronized multi-spindle units.
- Aluminum part fabrication now means “input extrusion, output finished component” — no secondary handling.
- Automated aluminum drilling system lets small factories achieve near-unmanned operation.
Ideal for: Shelving uprights, solar rail cross-members, automation guides, retail displays, and warehouse racks — where volume and repeatability matter more than complexity.
Critical Selection Criteria: What Matters Most to Procurement
Spindle Performance: The Heart of High-Speed Machining
Aluminum demands high speed machining. Target 10,000–24,000 rpm, G1.0 or better balance grade, and jacketed coolant to maintain spindle temperature within ±1°C. Studies show this approach triples material removal rate while extending tool life by 40%.
Control System: Your Machine’s Brain
Choose a controller that supports direct CAM software import (Mastercam, SolidCAM), offers toolpath simulation, and integrates with MES via OPC UA or MTConnect. Avoid closed systems — future-proofing matters.
Rigidity and Thermal Stability: The Foundation of Accuracy
Opt for ductile cast iron (HT300) beds over welded steel. Use roller linear guides with preloaded nuts. High-end machines include thermal compensation algorithms — essential for maintaining ±0.02 mm accuracy over long runs.
Feed System and Repeatability
Full closed-loop control with linear encoders is non-negotiable. Repeatability must be ≤±0.005 mm. Linear motors outperform ball screws in speed and zero backlash — ideal for high speed aluminum milling.
Cooling and Chip Removal: Keep the Machine Running
- Coolant pressure: ≥20 bar
- Fluid type: Synthetic cutting fluid (5–8% concentration) — never emulsions
- Chip removal: Chain conveyor + auger remover combo
- Air quality: Install mist collectors for operator safety
Automation Readiness: Build for the Future
Ensure your machine supports:
- ATC with ≥30 tools and <2.5-second change time
- Robot interfaces (ABB, KUKA)
- PLC I/O for sensors and alarms
- MTConnect/OPC UA for data collection
These aren’t luxuries — they’re prerequisites for scalable, smart manufacturing.
Real-World Applications: Choosing Based on Outcomes, Not Specs
Case 1: Automation Manufacturer — Low Volume, High Variety
Need: 1,200 aluminum brackets/month, 3 variants, frequent changeovers
Solution: VMC + QDC
Result: 7.2 min/part, 4 min changeover, 14,400 units/year
Takeaway: VMC delivers unmatched flexibility at low cost.
Case 2: Renewable Energy Supplier — High Volume, Consistency Critical
Need: 1,500 battery trays/day, four-sided drilling and tapping
Solution: HMC + dual pallet exchange
Result: 6.5 min/part, 91% uptime, CV of 0.32%
Takeaway: HMC enables true blackout production — 3 years of labor savings exceed $65,000.
Case 3: Solar Racking Producer — Oversized Profiles
Need: 6-meter aluminum beams, 12 holes per end, ±0.1 mm alignment
Solution: Gantry CNC
Result: One-setup machining, 0.06 mm alignment, 99.2% fit rate
Takeaway: Gantry is the only viable solution for long-profiles.
Case 4: Profile Fabricator — Standardized, High-Volume Output
Need: 2,000 meters of 40-series extrusion/day, drilling and tapping Solution: Dedicated aluminum profile machining center
Result: 3.8 seconds/meter, one operator manages three machines
Takeaway: Purpose-built automation cuts unit cost by 47%.
Common Selection Mistakes — And How to Avoid Them
Mistake 1: Choosing Based on Price Alone
Cheap machines often fail within 12 months — spindle noise, guide wear, system crashes.
✅ Fix: Prioritize MTBF (Mean Time Between Failures) and local service response time.
Mistake 2: Buying a “Jack-of-All-Trades” Machine
A machine that claims to handle steel, aluminum, and plastics will underperform on aluminum.
✅ Fix: Go specialized. Aluminum needs optimized spindles, coolants, and chip removal.
Mistake 3: Ignoring Infrastructure Requirements
CNC machines need:
- Voltage stability within ±5%
- Clean compressed air at 0.6 MPa, oil content <0.01 ppm
- A dedicated concrete foundation, 600 mm thick
✅ Fix: Engineer your floor before you order the machine.
Mistake 4: Not Planning for Growth
If you’re making 50 parts/day today, will you need 200 in two years?
✅ Fix: Choose a platform with automation-ready interfaces — don’t buy a machine, buy a system.
Conclusion: This Isn’t a Purchase — It’s a Strategic Investment
Choosing a CNC machine isn’t about buying a tool. It’s about building your manufacturing capability for the next 3–5 years.
It determines:
- Can you scale with demand?
- Can you deliver consistent quality?
- Can you reduce scrap and rework?
- Can you free your team from repetitive tasks?
In aluminum profile machining, there’s no “best machine.” There’s only the right machine for your needs.
- Low volume, high variety?
Choose the best CNC for aluminum profiles — a vertical machining center. - High volume, zero tolerance for variation?
Choose the industrial aluminum machining center — a horizontal machining center. - Processing 6-meter beams or structural frames?
Choose the aluminum profile cutting machine — a gantry system. - Producing hundreds of identical extrusion parts daily? Choose the aluminum frame CNC machine — a dedicated profile processing unit.
Don’t be swayed by marketing. Don’t chase specs. Base your decision on real production outcomes.
The right CNC machine isn’t just equipment — it’s the most reliable, efficient, and profitable asset in your factory.
— True expertise lies not in the manual, but in understanding your production.
