How to Choose the Right CNC Machine for Aluminum Parts

Why Aluminum Machining Is Unique—and Why Machine Selection Matters

Aluminum alloys have become one of the most widely used lightweight metals in modern manufacturing, thanks to their low density (about one-third that of steel), high strength-to-weight ratio, excellent thermal and electrical conductivity, ease of forming, and recyclability. From aerospace and electric vehicles to consumer electronics, rail transit, medical devices, and precision instruments, aluminum components are increasingly prevalent. According to the International Aluminium Institute (IAI), roughly 30% of global primary aluminum consumption goes into transportation, 25% into construction, 15% into packaging, and the rest into machinery and electronics.

However, machining aluminum presents distinct challenges compared to steel or titanium. While aluminum is relatively soft—6061-T6, for example, has a Brinell hardness of around 95 HB—its high ductility makes it prone to built-up edge (BUE) during cutting, which can degrade surface finish. Its thermal expansion coefficient (23.6 × 10⁻⁶/°C) is nearly double that of steel, demanding exceptional thermal stability during machining. Additionally, aluminum chips tend to be stringy or coiled, highly conductive, and sticky—they readily cling to tools and workpieces. Poor chip evacuation can scratch finished surfaces or even cause machine downtime.

Because of these nuances, selecting the right CNC machine for aluminum parts isn’t as simple as repurposing a general-purpose metalworking center. A mismatched machine can lead to sluggish cycle times, drastically shortened tool life (in some cases, less than 30% of expected), and quality issues like dimensional inaccuracies, chatter marks, or part distortion—sometimes resulting in entire batches being scrapped. This article breaks down the core performance requirements for aluminum machining—from spindle dynamics and structural rigidity to control systems and chip management—and offers a practical, application-driven framework for choosing the right CNC equipment based on part geometry, production volume, and precision needs.

Key Performance Requirements for Aluminum Machining

High Spindle Speed & Power: The Foundation of High-Speed Machining

Aluminum allows for significantly higher cutting speeds than steel. For common alloys like 6061 or 7075, recommended cutting speeds with carbide tools range from 300 to 1,500 m/min—far exceeding the 80–200 m/min typical for carbon steel. To unlock aluminum’s full machinability potential, your CNC machine must deliver high spindle speeds.

High-Speed Machining (HSM) is the gold standard for aluminum. It not only boosts material removal rates (MRR) but also minimizes heat transfer to the workpiece—since most heat is carried away by the chips—reducing thermal distortion and improving surface finish. Studies show that with spindle speeds above 10,000 rpm, surface roughness (Ra) can consistently stay below 0.4 μm; below 6,000 rpm, Ra often exceeds 1.6 μm, with visible chatter marks.

Thus, an ideal aluminum-focused CNC should offer a spindle speed range of 10,000–30,000 rpm. For micro-features or mirror finishes, even 40,000+ rpm may be necessary. But speed alone isn’t enough—it must be paired with intelligent power delivery. Roughing demands high torque for deep cuts (5–10 mm) and aggressive feed rates (2,000–5,000 mm/min), while finishing thrives on high RPM and low cutting forces. The best spindles provide a broad torque-power curve: strong low-end torque for heavy cuts and sustained power at high speeds.

Practical guidance:

• For small-to-medium parts: spindle power ≥ 15 kW
• For large structural components (e.g., aircraft frames): ≥ 30 kW, with S6 duty cycle support for intermittent heavy cutting

High Dynamic Response & Acceleration: Essential for Thin Walls and Complex Geometries

Modern aluminum parts—think drone frames, EV battery trays, or heat sink fins—often feature intricate contours, deep cavities, and ultra-thin walls (sometimes under 2 mm). These geometries are highly susceptible to vibration and deflection under cutting forces, making dynamic performance critical.

Acceleration determines how quickly the machine responds to direction changes or tight corners. Data shows that increasing acceleration from 0.5g to 1.5g can cut machining time by 25–40% on complex profiles while dramatically reducing chatter. For high-precision thin-wall work, aim for ≥1.0g (≈9.8 m/s²) on all linear axes and rapid traverse speeds of ≥60 m/min.

Equally important is the control bandwidth of the servo system. Low bandwidth causes trajectory lag at high speeds, leading to contour errors. Top-tier aluminum machines often use linear motors or high-rigidity ball screws with preloaded bearings, paired with high-resolution linear encoders (≤0.1 μm resolution) for closed-loop control—keeping dynamic following error within ±2 μm.

Rigidity & Vibration Control: The Bedrock of Precision and Finish

Even though aluminum is soft, machining thin or cantilevered features can trigger chatter if the machine lacks sufficient rigidity. Chatter ruins surface quality, accelerates tool wear, and can even cause catastrophic tool failure.

Crucially, aluminum machining prioritizes dynamic stiffness over static stiffness. Dynamic stiffness reflects how well the system resists vibration under fluctuating cutting forces—typically evaluated via Frequency Response Function (FRF) testing. Ideally, the natural frequency of the spindle-tool system should avoid the tooth-pass frequency and its harmonics to prevent resonance.

High-performance aluminum machines often feature:

• Symmetrical gantry or box-in-box structures for torsional rigidity
• Polymer concrete or high-damping cast iron bases to absorb high-frequency vibrations
• Short spindle overhang to minimize deflection
• Large-diameter, preloaded linear guides for stable axis motion

Real-world tests confirm that a 30% increase in dynamic stiffness can reduce surface roughness by ~20% and extend tool life by 15–25%.

Cooling & Chip Removal: The Unsung Heroes of Productivity

Aluminum chips are sticky, ductile, and melt at just 660°C. During high-speed cutting, they easily wrap around tools, clog flutes, or even weld onto the workpiece as stubborn “aluminum smears.” A robust cooling and chip evacuation system isn’t optional—it’s essential for uninterrupted, high-quality production.

Coolant options:

• Water-based emulsions: Cost-effective and excellent for cooling; maintain pH between 8.5–9.5 to prevent corrosion
• Oil-based cutting fluids: Superior lubrication for high-gloss or micro-feature work—but higher cost and environmental impact
• MQL (Minimum Quantity Lubrication) or dry cutting: Ideal for ultra-clean applications (e.g., electronics housings), but demands precision tooling and tight process control

Chip removal best practices:

• Use high-incline (≥30°) chain or scraper conveyors—avoid auger types, which jam easily
• Design internal chip channels with no dead zones
• For deep cavities, integrate Through-Spindle Coolant (TSC) at 30–70 bar to flush chips and cool the cutting zone

Factories report that effective TSC and chip management can cut non-cutting time by 40%, significantly boosting Overall Equipment Effectiveness (OEE).

Matching Machine Type to Part Profile and Volume

Large Structural Components → Gantry Machining Centers

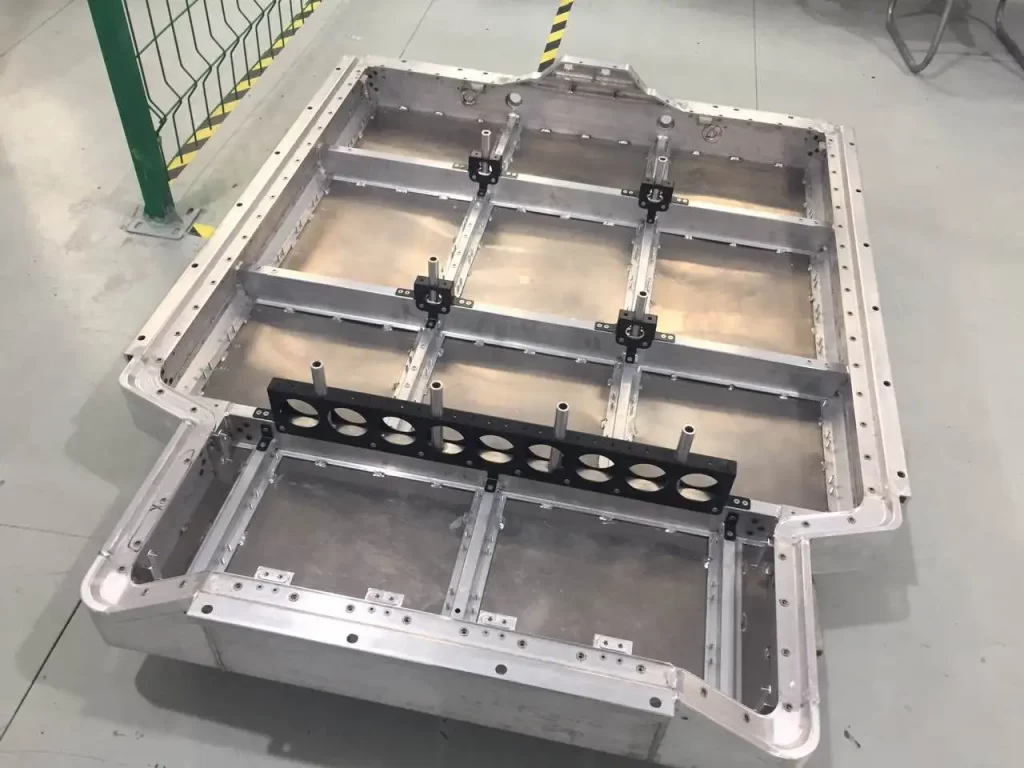

Typical parts: EV battery trays, aircraft ribs, rail car sidewalls Key traits: Large (>1,000 mm), thin-walled, ribbed, multi-sided

Recommended specs:

• Fixed or moving-gantry design, table load capacity ≥ 2,000 kg
• Direct-drive or dual-motor spindle, ≥30 kW, 8,000–15,000 rpm
• Travel range: X/Y/Z ≥ 2,000/1,500/800 mm
• Features: ATC, dual pallets, on-machine probing

These machines dominate EV and aerospace production, enabling full milling, drilling, and tapping in a single setup—critical for sealing surfaces and cycle time. Purpose-built CNC gantry centers for EV battery trays integrate high-rigidity bridges and optimized chip flow, delivering reliable CNC machining of aluminum parts at scale.

Long Extrusions & Curtain Wall Members → Dedicated Aluminum Profiling Centers

Typical parts: Architectural mullions, industrial extrusions, window frames Key traits: Lengths of 6–12 meters, requiring end-milling, slotting, and multi-hole drilling with tight straightness and repeatability

Recommended specs:

• Extended-bed design with adaptive hydraulic/pneumatic clamping
• Multiple independently programmable spindle heads
• Integrated auto-loading and positioning
• Direct CAD/CAM integration

These systems excel in construction and industrial aluminum sectors. Modular spindle heads and smart fixturing enable “one-pass” processing of complex cross-sections—minimizing manual handling and secondary setup errors. Curtain wall CNC fabrication equipment is specifically engineered for aluminum extrusions, proven across major façade projects worldwide.

Small Precision Components → High-Speed Vertical Machining Centers (VMCs)

Typical parts: Smartphone frames, laptop chassis, 5G base station housings Key traits: Compact (<300 mm), geometrically complex, high surface finish (Ra ≤ 0.4 μm), high-volume

Recommended specs:

• Integrated motor spindle, ≥15,000 rpm, HSK interface
• Positioning accuracy: ≤±0.005 mm
• Rapid traverse: ≥60 m/min
• Automated loading/unloading support

In consumer electronics and telecom manufacturing, these VMCs are workhorses. Their thermal stability and ultra-high spindle speeds consistently deliver Ra ≤ 0.4 μm, meeting the demands of mass precision CNC machining. They’re equally suited for high-throughput aluminum housings in automotive or aerospace CNC applications.

Standard Extrusion Cutting → Double-Head Sawing Machines

For simple end-cutting and angle trimming of standard profiles, double-head saws offer unmatched cost efficiency. They enable synchronized, precise cuts on both ends—ensuring consistent length and squareness—making them indispensable in window, door, and curtain wall finishing lines as a key complement to aluminum extrusion workflows.

Decoding Critical Selection Criteria

Spindle Type: Integrated Motor vs. Belt/Gear-Driven

FEATURE	INTEGRATED MOTOR SPINDLE	BELT/GEAR-DRIVEN SPINDLE
Speed Range	10,000–60,000 rpm	3,000–15,000 rpm
Dynamic Response	Instant (no transmission lag)	Slower (inertia from belts/gears)
Maintenance	Complex (sealed unit)	Simpler (modular)
Cost	Higher	Lower
Best For	High-speed finishing, micro-machining	Heavy roughing, general-purpose

For aluminum, integrated motor spindles dominate due to their speed and responsiveness—ideal for HSM. Just ensure they include active thermal management, as bearing temperatures can rise >50°C at high RPM.

CNC Control System & Software Compatibility

The control system is the machine’s brain. For aluminum, prioritize systems with:

• Look-ahead (≥500 blocks): Smoothes feed rates through complex paths, boosting efficiency by ~15%
• Adaptive Feed Control (AFC): Adjusts feed in real time based on cutting load (via spindle current or vibration sensors)
• HSM Mode: Optimized interpolation for smoother finishes
• Thermal Compensation: Uses temperature sensors to correct for spindle/screw expansion, holding drift within ±3 μm

Also ensure compatibility with leading CAM platforms (NX, Mastercam, PowerMill) and neutral formats (STEP, IGES) for seamless workflow integration.

Accuracy & Repeatability

Most aluminum parts require IT7–IT9 tolerances (0.01–0.05 mm); high-precision jobs may demand IT5 (±0.005 mm). So, machine accuracy must have headroom.

Per ISO 230-2:

• Positioning accuracy: ≤ 0.008 mm/300 mm
• Repeatability: ≤ ±0.003 mm
• Reversal error: ≤ 0.004 mm

For large machines, also assess volumetric accuracy—measurable via laser interferometry or ball bar tests. Premium models often include 3D error compensation maps, keeping spatial errors within ±0.01 mm/m³.

Automation & Future-Proofing

Modern production demands flexibility. Look for:

• Robot-ready interfaces (Profinet, EtherCAT, RS-232)
• On-machine probing (contact or laser) for in-process measurement
• Smart tool management with RFID, life tracking, and breakage detection
• Digital twin connectivity via OPC UA or MTConnect for MES/ERP integration

Modular designs—like expandable tool magazines or add-on rotary tables—also let you scale capabilities without replacing the entire machine.

Common Pitfalls—and How to Avoid Them

Mistake #1: Chasing RPM Without System Balance

High spindle speed means little if the frame lacks rigidity or the servos can’t keep up.
Solution: Define your required MRR and surface quality first, then evaluate the entire system—spindle, structure, and controls—as a unified whole.

Mistake #2: Using a General-Purpose Steel Machine for Aluminum

Generic mills often max out below 8,000 rpm, have low acceleration (<0.5g), and poor chip handling—leading to inefficiency and downtime.
Solution: Invest in a machine purpose-built or optimized for non-ferrous metals, even if it’s a modest “aluminum-specialized” model.

Mistake #3: Ignoring Shop Floor Thermal Stability

With aluminum’s high thermal expansion, a 5°C ambient swing can throw parts out of tolerance—even on a precise machine.
Solution: Maintain a 20±1°C climate in your aluminum machining zone, away from direct sunlight or HVAC drafts.

Mistake #4: Overlooking Tooling-Holder-Machine Synergy

A world-class machine paired with a cheap ER collet or unbalanced tool won’t perform.
Solution: Use HSK or Capto tooling (balanced to G2.5 @ 20,000 rpm), DLC or TiAlN-coated carbide tools, and hydraulic or shrink-fit chucks for maximum rigidity.

Final Thought: Let the Part Drive the Machine Choice

Selecting a CNC machine for aluminum isn’t about chasing specs—it’s about aligning equipment capabilities with real-world process demands. Before comparing machines, ask:

• What alloy and temper are we machining?
• What are the critical tolerances and surface finish requirements?
• What’s the target material removal rate and cycle time?
• What’s the production volume—and do we need automation?

Then, run cutting trials on shortlisted machines. Nothing beats machining an actual part to validate efficiency, accuracy, surface quality, and tool life.

In practice, many manufacturers find success by partnering with suppliers who specialize in their application domain. For instance, if you’re producing EV battery trays or architectural aluminum extrusions, consider vendors with proven CNC gantry centers or curtain wall fabrication systems—like DELI—whose machines have already demonstrated reliability in high-stakes, high-volume aluminum workflows.

Choose wisely, and your CNC won’t just cut aluminum—it’ll elevate your entire manufacturing capability.
