Gantry Vs Vertical CNC for Long Aluminum Parts
In modern manufacturing, aluminum has become the material of choice for large-scale structural components — from curtain walls and solar panel frames to electric vehicle battery trays and rail transit systems. Its lightweight strength, corrosion resistance, and recyclability make it indispensable. But as parts grow longer — often exceeding 6 to 12 meters — a critical question emerges: Which CNC machine truly delivers precision, efficiency, and reliability when machining long aluminum profiles?
Too often, manufacturers default to vertical machining centers (VMCs), lured by lower upfront costs. Yet they quickly encounter the same painful realities: inconsistent hole locations, bowed surfaces, excessive scrap rates, and labor-intensive rework. The root cause? A fundamental mismatch between machine design and part geometry.
Structural Design: Rigidity Isn’t Optional — It’s Foundational
When cutting aluminum profiles longer than 5 meters, the workpiece becomes a cantilevered beam. Even under moderate cutting forces, it deflects. If the machine can’t resist that deflection, your tolerances vanish — and so does your quality.
Gantry CNC: Engineered for Stability

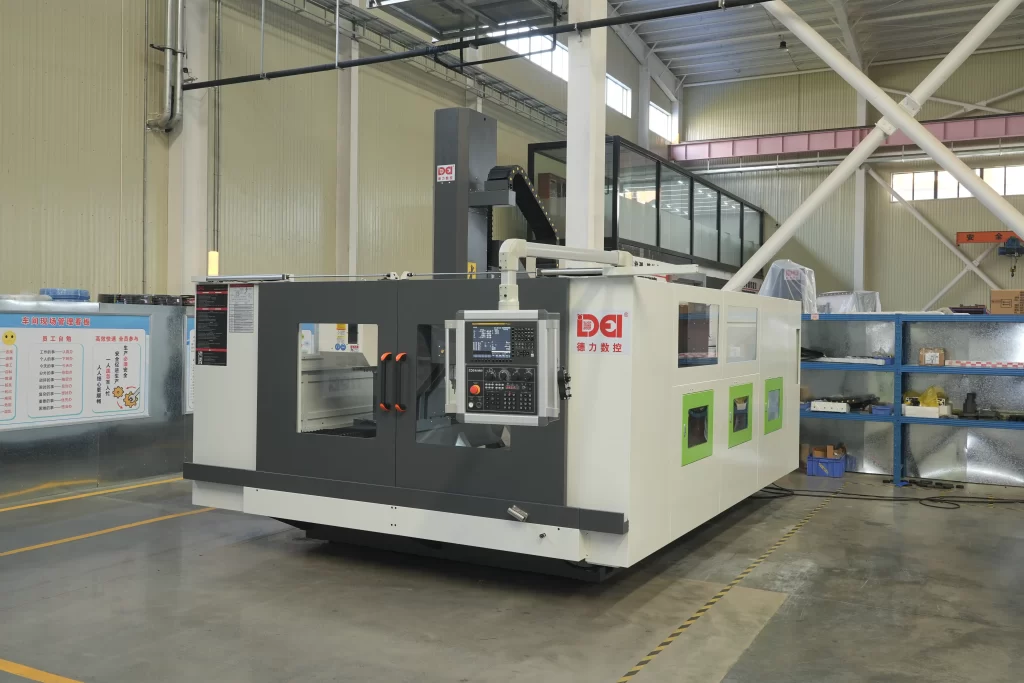

Gantry CNC machines are built on a dual-column, overhead-beam structure. The spindle moves along a rigid crossbeam, which itself travels on precision rails mounted to two massive vertical columns. This symmetrical design distributes cutting loads evenly, dramatically increasing torsional and bending stiffness.
Finite Element Analysis (FEA) simulations show that under typical machining conditions — 8,000 RPM spindle speed, 10 m/min feed rate, 3 mm depth of cut — a well-designed gantry system maintains Z-axis deflection at just 0.05–0.08 mm at its maximum travel (e.g., 10–15 meters). This level of stability ensures consistent dimensional accuracy across the entire length of the profile, meeting IT7 tolerances without exception.
Modern gantry systems further enhance performance with:
- Heavy-duty linear guides (e.g., THK or HIWIN) rated for 20–30 kN dynamic load;
- Dual-drive synchronous control systems that eliminate backlash and skewing by synchronizing both ends of the beam via high-resolution linear encoders;
- Box-section welded bases with internal stiffeners to dampen vibration and reduce resonant frequencies;
- Integrated dust and chip sealing systems to protect critical motion components from aluminum debris — a major cause of premature wear.
These features combine to create a platform where long aluminum extrusions can be machined in a single setup — milling, drilling, tapping, and contouring all in one pass.
Vertical CNC: A Design Built for Short Parts — Not Long Ones

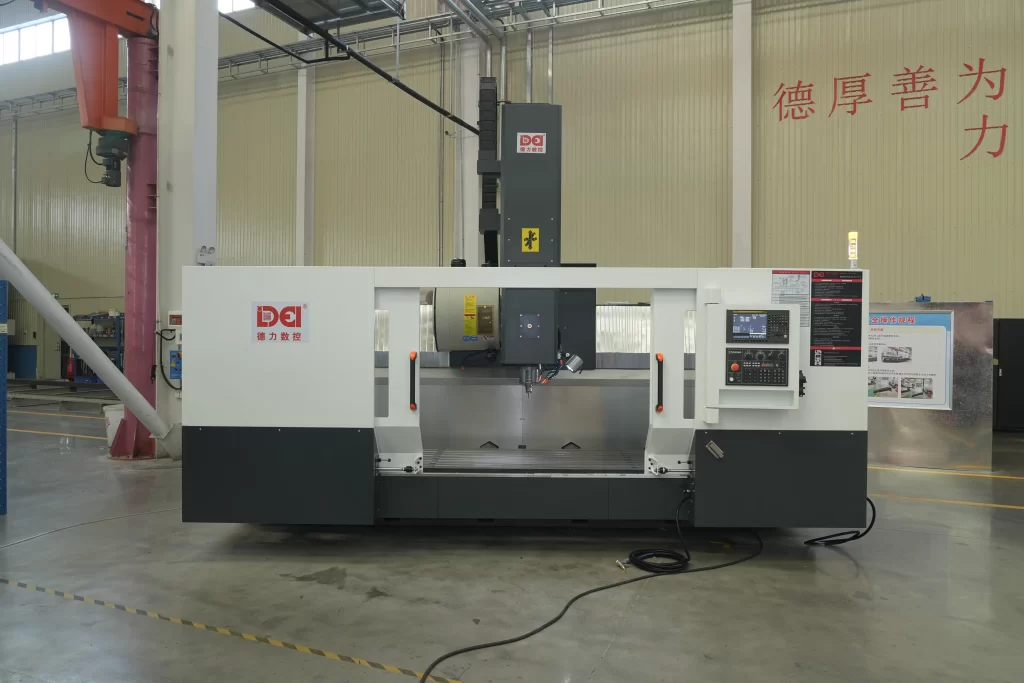

Vertical CNC machines — while excellent for small-to-medium parts — are fundamentally constrained by their “C-frame” or “L-frame” architecture. The spindle is mounted on a single column, with the worktable moving beneath it. This creates two inherent weaknesses when handling long aluminum profiles:
- Limited travel and structural flex — Most VMCs max out at 3 meters of X-axis travel. Even extended models suffer from reduced rigidity over distance, leading to tool deflection and surface inaccuracies.
- Cantilever-induced Z-axis sag — As the tool extends away from the column to reach the far end of a 6-meter profile, gravity and cutting forces cause the spindle to droop. This results in positional errors of 0.15–0.30 mm — far beyond the ±0.05 mm tolerance required for precision components.
Worse, there’s no practical way to support the mid-span of a long extrusion on a VMC. The workpiece sags under its own weight, and no amount of slower feed rates or sharper tools can compensate for this mechanical flaw.
Real-world test data confirms the gap:
A 6.5-meter aluminum curtain wall profile processed on a vertical CNC exhibited a total straightness error of 0.22 mm. The same profile, machined on a gantry system, achieved 0.06 mm — a 73% improvement in precision.
Machining Capability: One Setup vs. Five Setups
Precision starts with stability. But efficiency? That’s about how many times you have to touch the part.
Gantry CNC: One Clamp. One Cycle. Full Processing.
Gantry systems are purpose-built for long-profile applications. With X-axis travel extending up to 15 meters, they handle entire extrusions end-to-end — no breaks, no repositioning.
They also support:
- Multi-spindle and multi-head configurations — drill, mill, tap, and chamfer simultaneously;
- Integrated 4th/5th-axis rotary heads — enabling angled holes, complex grooves, and contoured edges without flipping the part;
- High dynamic acceleration — up to 1.5g — cutting non-cutting time by up to 40%.
In solar panel frame production, a typical workflow includes:
- End milling
- Row of precision holes
- T-slot milling
- Deburring
On a gantry CNC, this entire sequence runs in 8–12 minutes per piece, with zero human intervention between operations.
Vertical CNC: The Multi-Setup Trap
With a VMC, machining a 6-meter profile requires:
- Two to three separate setups — each time re-clamping, re-aligning, and re-zeroing;
- Manual handling — heavy extrusions (50–200 kg) are awkward, slow, and risky;
- Error accumulation — every setup introduces a new source of positional drift.
The result?
A factory switching from VMC to gantry for curtain wall production saw:
- Cycle time drop from 38 minutes to 11 minutes per part
- Scrap rate fall from 15% to 1.8%
- Output increase of 2.5x with 60% fewer operators
In short: Vertical CNCs aren’t “cheaper” — they’re slower, less accurate, and more expensive to run when it comes to long parts.
Automation Readiness: Can Your Machine Scale With Your Business?
Industry 4.0 isn’t a buzzword — it’s a competitive necessity. If your machine can’t integrate into an automated line, you’re already falling behind.
Gantry CNC: Built for the Smart Factory
Gantry systems are inherently automation-friendly:
- Open front and rear access — perfect for AGVs, conveyor lines, and robotic arms;
- Standardized I/O interfaces — easily connect to laser measurement probes, tool wear sensors, and PLC-controlled material handling;
- Seamless MES integration — track part history, machine utilization, and quality metrics in real time.
One leading solar manufacturer deployed a gantry-based cell with automated loading/unloading and in-process inspection. The result?
One operator managing five machines, producing over 500 frames per day — with zero rework.
Vertical CNC: The Island Machine
Trying to automate a vertical CNC for long parts is like fitting a tractor trailer into a compact car garage.
- Limited workspace leaves no room for robots or sensors;
- Heavy, awkward parts require custom, expensive handling systems;
- No continuous flow possible — each part must be handled individually;
- Upgrading often means replacing the entire machine.
The hidden cost? Automation projects on VMCs frequently cost 1.5–2x the machine price — and still underperform compared to native gantry automation.
Total Cost of Ownership (TCO): The Real Price of “Cheap” Machines
Many buyers focus only on the sticker price. But the real cost of a machine unfolds over five years — in labor, scrap, downtime, and lost opportunity.
Here’s the hard truth:
| COST FACTOR | GANTRY CNC | VERTICAL CNC (FOR LONG PARTS) |
|---|---|---|
| Initial Purchase Price | $120,000 – $250,000 | $60,000 – $100,000 |
| Labor Cost Per Meter Processed | $1.00 – $1.50 | $4.00 – $5.50 |
| Monthly Scrap & Rework Cost | $1,500 – $3,000 | $10,000 – $25,000 |
| Tool Life | Long (stable cutting) | Short (vibration-induced wear) |
| Equipment Utilization (OEE) | 80–90% | 55–65% |
| Annual Maintenance Cost | $5,000 – $8,000 | $8,000 – $15,000 |
| Total Cost of Ownership (5 Years) | $190,000 – $230,000 | $320,000 – $450,000 |
Data sourced from 30+ aluminum profile manufacturers across construction, solar, and transportation sectors.
The Bottom Line
Yes, a gantry CNC costs more upfront. But over five years, it saves 35–45% compared to a vertical machine forced into a role it wasn’t designed for.
The real cost isn’t the machine — it’s the missed orders, the angry clients, the overtime hours, and the reputational damage from late or defective deliveries.
Final Verdict: Choose Based on Your Parts — Not Your Budget
Machining long aluminum profiles isn’t about picking the “right” machine. It’s about picking the right solution.
If your work includes:
- Curtain wall extrusions over 5 meters
- Solar panel frames, rail components, or EV battery trays
- Any part where precision, repeatability, and throughput matter
…then a gantry CNC isn’t a luxury — it’s your baseline requirement.
A vertical CNC might be fine for small brackets, enclosures, or short sections. But for anything longer than 5 meters?
It’s like trying to haul a shipping container with a bicycle.
The right machine doesn’t just cut aluminum — it cuts waste, cuts labor, cuts delays, and cuts your path to scalable, profitable growth.
