Double Head vs Single Head Saw for Windows & Curtain Walls
In today’s competitive window and door manufacturing environment, precision starts at the saw. Even a half-degree angular error on a cut profile can lead to failed seals, field callbacks, or costly rework downstream.
Choosing the right cutting system isn’t just about upfront cost—it’s a strategic decision that impacts product quality, production throughput, and long-term scalability.
While both the single head saw and the double head saw machine cut aluminum profiles, they support fundamentally different production philosophies: one prioritizes flexibility, the other consistency and speed.
This guide cuts through the noise to help you select the right equipment—not the cheapest, but the one that truly fits your operation.

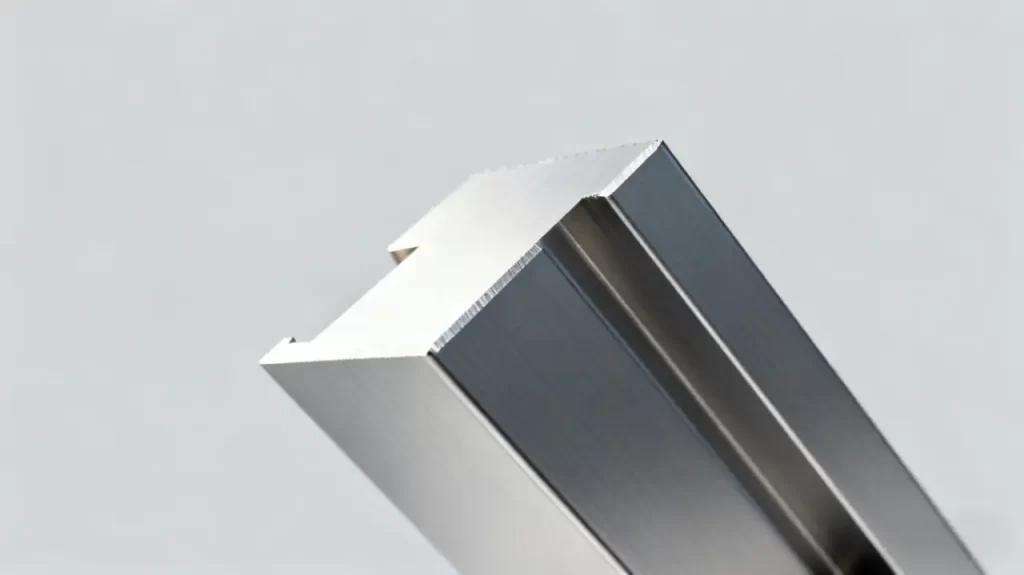

1. Why Sawing Accuracy Matters More Than You Think
Modern building codes and performance standards (such as ISO 12211 and GB/T 7106) impose strict tolerances:
- Angular deviation: ±0.5° maximum
- Length tolerance: ±0.2 mm or better for seamless corner assembly
Exceed these, and you risk air and water infiltration, poor energy performance, or even structural concerns in high-wind zones.
Basic bench saws or manual setups simply cannot maintain this level of repeatability across hundreds—or thousands—of parts. That’s why CNC cutting solutions for aluminum profiles, particularly double head saw machines, have become essential in high-quality fabrication shops.
2. How They Work: Structure Determines Efficiency
2.1 Single Head Saw – The Flexible Workhorse
A single head saw features one cutting blade mounted on a pivoting arm. The typical workflow involves:
- Manual loading of the profile
- Setting length (via tape measure or digital counter)
- Clamping the material
- Cutting one end, then repositioning for the other
Typical specifications:
- Angle range: 45° to 90° (some models support up to 135°)
- Angular repeatability: ±0.3°
- Length tolerance: ±0.5 mm
- Best for: custom jobs, repair work, low-volume production
It’s affordable, compact, and easy to operate—but every cut demands direct operator involvement, creating a clear bottleneck in throughput.
2.2 Double Head Saw Machine – The Engine of Precision and Speed
A double head saw machine integrates two synchronized cutting heads (one fixed, one movable) on a single rigid base. The process is largely automated:
- Operator inputs length and angle
- The machine automatically positions both heads
- The profile is clamped and both ends are cut in a single cycle
Key advantages:
- Angular repeatability: ±0.1°
- Length accuracy: ±0.1 mm (via servo motors and linear encoders)
- Cycle time: 12–20 seconds per part
- Supports memory storage for 10–20 common dimensions
For high-volume production of systems windows, sliding doors, or curtain wall components, this is the industry standard.
When cutting long aluminum parts—such as 6-meter mullions for facades—specialized curtain wall CNC fabrication equipment adds auxiliary support rollers and reinforced frames to prevent deflection and vibration during cutting, ensuring straight, clean ends.
Note: According to publicly available information, double head sawing machines and curtain wall CNC fabrication equipment are applied in industries including furniture, specifically for doors and windows, curtain walls, and long aluminum parts.
3. Real-World Comparison: Performance, Cost, and Fit
3.1 Precision Benchmarked
| PARAMETER | SINGLE HEAD SAW | DOUBLE HEAD SAW MACHINE |
|---|---|---|
| Angular repeatability | ±0.3° to ±0.5° | ±0.1° to ±0.2° |
| Length tolerance | ±0.5 mm | ±0.1 mm |
| End-face perpendicularity | ≤0.3 mm/m | ≤0.15 mm/m |
| Burr quality | Requires deburring | Typically clean-as-cut |
In 45° corner assembly—a hallmark of high-end systems windows—even a 0.3° mismatch prevents full contact between the corner cleat and profile, creating micro-gaps that compromise sealing. The double head saw machine eliminates this risk through synchronized dual-end cutting.
3.2 Throughput: It’s Not Just Speed—It’s Labor Efficiency
For a standard 6063-T5 aluminum profile:
- Single head saw: ~700 parts per 8-hour shift
- Double head saw machine: ~2,200+ parts per shift
More importantly, one operator can manage 2–3 double head saw machines in auto mode, while single head saws require dedicated, hands-on attention for every cut.
3.3 Which One Fits Your Shop?
| CHOOSE A SINGLE HEAD SAW IF… | CHOOSE A DOUBLE HEAD SAW MACHINE IF… |
|---|---|
| Daily output is under 500 parts | You produce 1,000+ standard units/day |
| Jobs change constantly (custom work) | You run repeat batches (e.g., tilt-turn) |
| Budget is tight (<$10K) | You’re planning automation or data integration |
| Floor space is limited | You need traceability or MES compatibility |
Real-world result: A window fabricator replaced three manual single head saws with one automatic double head saw machine with auto-feed. Outcome: corner rework dropped from 8% to 3%, and lead time was reduced by three days—with no additional labor.
4. Typical Applications and Equipment Categories
In modern high-precision manufacturing, equipment types have evolved to match specific needs:
- Single head saws excel in custom furniture, specialty doors/windows, and repair work where flexibility is key;
- Double head sawing machines are engineered for high-volume window and door production, emphasizing angular consistency and rapid cycle times;
- Curtain wall CNC fabrication equipment addresses the unique challenges of long aluminum parts, such as facade mullions and transoms, requiring extended beds and enhanced structural rigidity.
These systems are commonly deployed across sectors including automotive, new energy vehicles, aerospace, rail transit, 5G, and furniture—with the furniture segment covering customized home furnishings, doors and windows, curtain walls, and long aluminum parts, as noted in industry applications.
5. Final Advice: You’re Not Buying a Machine—You’re Buying Capability
Ask yourself:
- Are you struggling with inconsistent corners or rework? → A double head saw machine may be your solution.
- Are you constantly switching between custom villa windows or one-off samples? → A single head saw offers the agility you need.
- Are you planning to scale, export, or integrate digital production? → Build in CNC readiness now.
The right equipment doesn’t just cut aluminum—it cuts waste, delays, and uncertainty.
Base your decision on real production data, not marketing claims. That’s how top fabricators stay ahead.
