CNC Machine Coolant: Guide to Maintenance & Savings

In modern precision manufacturing, Computer Numerical Control (CNC) machines are the backbone of production. Yet one of the most overlooked—yet critical—components of these systems is CNC machine coolant. Far from being a mere auxiliary fluid, coolant works in close synergy with the spindle, feed system, toolpath, and even the CNC program itself to ensure stable, high-performance machining.

Industry data shows that improper coolant management accounts for nearly 35% of unplanned CNC downtime. Moreover, studies from the National Institute of Standards and Technology (NIST) reveal that inadequate cooling during titanium or high-temperature alloy machining can slash tool life by over 50%, disrupting entire production schedules. As CNC machines evolve toward higher speeds, tighter tolerances, and greater automation, cooling systems have transformed from simple “heat dissipators” into active process control units.

1. How the Cooling System Works with Your CNC Machine

1.1 Core Components of a CNC Machine

A typical CNC machining center includes these key subsystems:

• Machine bed and guideways: Provide structural rigidity and geometric accuracy
• Spindle unit: Drives cutting tools, typically operating from 0–24,000 rpm (up to 60,000+ rpm for high-speed electric spindles)
• Feed system: Servo motors paired with ball screws or linear motors enable precise X/Y/Z motion
• Tool magazine and changer: Supports automatic tool change (ATC) for lights-out production
• CNC controller: Interprets G-code and coordinates axis movements with auxiliary functions (M-codes)
• Cooling and lubrication system: Maintains thermal stability at the cutting zone and protects mechanical components

The CNC coolant system directly serves the “thermo-mechanical core”—the dynamic interface between spindle, tool, and workpiece. It’s tightly integrated with the CNC controller via M-codes like M08 (coolant on) and M09 (coolant off), enabling fully automated operation.

1.2 The Four Key Roles of Coolant in Machining

From setup to finish, CNC machine coolant delivers four essential functions:

1. Cooling: Rapidly removes intense heat (cutting zones can exceed 1,000°C), preventing thermal distortion in both workpiece and tool
2. Lubrication: Reduces friction between tool and material, improving surface finish and minimizing work hardening
3. Cleaning: Flushes away chips, fines, and contaminants to keep cutting edges sharp and prevent surface damage
4. Rust inhibition: Forms a protective film on machine ways, fixtures, tools, and parts to guard against corrosion

In complex applications like 5-axis contouring or micro-milling, the precision of CNC coolant nozzles can even influence dynamic toolpath compensation and final surface quality.

2. Common Coolant System Types and Machine Compatibility

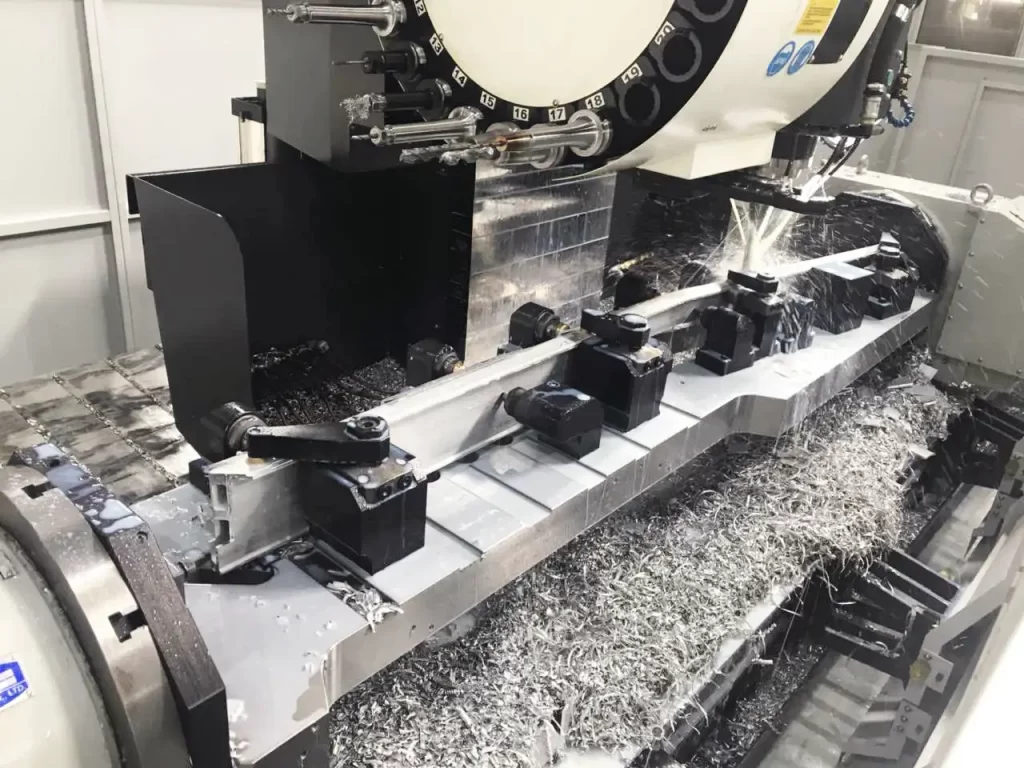

2.1 Flood Coolant Systems

The most widely used method, flood cooling delivers high-volume flow (typically 50–200 L/min) through external nozzles.

Integration with CNC machines:

• Controlled via solenoid valves triggered by M-codes (response time <100 ms)
• Nozzles are usually fixed around the spindle head; high-end models feature Z-axis-following nozzles
• Ideal for standard 3-axis milling or open-structure turning centers

Limitations:

• Struggles to reach deep cavities or complex 5-axis tool orientations
• At high spindle speeds (>10,000 rpm), it can generate mist—requiring oil skimmers or mist collectors, adding system complexity

2.2 Through-Spindle Coolant (TSC)

TSC delivers coolant directly through the spindle and tool to the cutting edge—a standard feature on high-end drilling and milling centers.

Key integration requirements:

• Spindle must include a rotary union and high-pressure seals (rated ≥70 bar)
• Tools and toolholders (e.g., HSK-A63, BT40 with internal coolant passages) must support internal flow
• CNC must support high-pressure coolant M-codes (e.g., M81/M82) with spindle interlocks

Performance benefits:

• Boosts chip evacuation by 60% in micro-drilling (<3 mm), preventing “bird’s nest” chip wrapping
• Extends tool life in titanium aerospace components from 30 to over 90 minutes
• Controls thermal spindle growth to within 5 microns, enhancing dimensional accuracy

2.3 Minimum Quantity Lubrication (MQL) and Near-Dry Machining

MQL atomizes a tiny amount of lubricant (5–50 mL/hour) with compressed air and targets it precisely at the cutting zone.

Best suited for:

• High-speed spindles (>20,000 rpm), where centrifugal force would fling off liquid
• Flexible manufacturing cells (FMC/FMS), where parts move directly to the next station—no washing needed
• Sensitive materials like carbon fiber or composites, where liquid penetration must be avoided

Control integration:

• Requires a dedicated MQL controller linked to the CNC via PLC or I/O signals
• Spray duration and frequency can be programmed for “on-demand” lubrication

3. Matching Coolant to Your Machine and Material

3.1 Coolant Selection by Machine Type and Workpiece Material

CNC Machine Type	Typical Materials	Recommended Coolant Type	Key Performance Requirements
Vertical Machining Center (VMC)	Aluminum, carbon steel	Semi-synthetic or full-synthetic	Low foaming, aluminum corrosion inhibition, high clarity
Horizontal Machining Center (HMC)	Cast iron, stainless steel	Emulsifiable oil	Strong chip flushing, hard-water tolerance
Mill-turn Center	Titanium, Inconel	EP-additive semi-synthetic	Extreme-pressure lubricity, thermal stability
Micro-machining System	Copper, silicon, ceramics	Deionized full-synthetic	Residue-free, high dielectric strength

3.2 How Cooling Affects Part Quality

• Thermal distortion: In precision mold making, insufficient cooling can cause 10–20 µm spindle growth, throwing off Z-axis dimensions
• Surface integrity: Poor lubrication during stainless steel milling can create a work-hardened layer up to 0.1 mm deep, reducing fatigue life
• Tool wear patterns: Inadequate cooling accelerates crater (flank) wear; proper cooling promotes uniform flank wear, enabling predictable tool life

4. Maintenance & Reliability: Protecting Your CNC Investment

4.1 How Coolant Failures Impact Machine Performance

• Spindle overheating: Just 5 minutes without coolant can raise bearing temps by 30°C+, triggering thermal shutdown
• Way corrosion: Low pH or chlorine-containing coolants can eat into cast iron guideways, increasing backlash
• Electrical faults: Mist infiltration into control cabinets can short-circuit servo drives

4.2 Boosting Overall Equipment Effectiveness (OEE) Through Proactive Care

OEE = Availability × Performance × Quality. Coolant maintenance directly improves Availability:

• Regular cleaning of coolant filters can cut unplanned downtime by ~15%
• Automated concentration control can triple coolant service life
• Quarterly ultrasonic cleaning of TSC channels prevents 90% of internal coolant failures

4.2.1 Essential Maintenance Checklist (Aligned with Best Practices)

• Maintain stable concentration: Use a refractometer regularly. Too low → loss of rust/lubrication protection; too high → foaming and residue. Target: 5–8% for emulsifiable oils, 3–5% for synthetics
• Replace and filter on schedule: Full coolant change every 2–3 months; clean filters and skim tramp oil weekly to curb bacterial growth
• Control odors and microbes: Avoid long idle periods without circulation; consider biocides or anti-foam additives if needed
• Mind water quality and environment: Always mix with softened or deionized water to prevent scaling; ensure good shop ventilation to reduce mist and odor buildup
• Prevent cross-contamination: Never allow hydraulic oil, way oil, or cutting oil into the coolant sump—tramp oil is the #1 cause of premature coolant breakdown
• Use proper filtration: A two-stage system (coarse + fine) keeps particles ≤10 µm; pair with an oil skimmer for optimal performance

5. Smart Coolant Management: Cut Costs Without Compromising Quality

5.1 Typical Annual Coolant-Related Costs (for a VMC running 2,000 hrs/year)

COST CATEGORY	ANNUAL ESTIMATE	SHARE
Coolant purchase	$1,100 – $2,100	40%
Waste disposal	$400 – $850	20%
Excess tool wear	$1,400+	30%
Downtime losses	$700+	10%

Note: Based on North American and European industrial averages; actual costs vary by region and scale.

5.2 Strategic Cost-Reduction Approaches

• Precision mixing: Follow manufacturer dilution ratios—more isn’t better
• Automated top-off: Systems that monitor level and concentration can reduce annual consumption by 10–20%
• Extend service life: With proper care, one batch of coolant can last 3× longer, slashing both purchase and disposal costs
• Strict contamination control: Keeping tramp oil out is the single most cost-effective maintenance step

5.2.1 Top Tools and Practices for Saving Money

• Coolant recycling
  Vacuum distillation or membrane filtration can reclaim 90% of used coolant—making it one of the smartest long-term investments in coolant management.
• How to recycle CNC coolant
  Choose between in-house regeneration systems or third-party services to close the loop and drastically cut disposal costs.
• Coolant management best practices
  Implement daily checks, log concentration readings, standardize mixing procedures, and train operators thoroughly.
• How to reduce CNC coolant costs
  Optimize nozzle placement, shut off coolant during non-cutting moves, and use variable-speed pumps—these steps can cut usage by 20–30%.
• When to change coolant
  Replace immediately if you notice foul odors, discoloration, excessive foaming, pH below 8.0, or abnormal viscosity.
• Controlling bacteria in CNC coolant
  Use deionized water, add biocides as needed, and keep the sump covered and out of direct light to suppress microbial growth.
• Coolant disposal regulations
  Always comply with local environmental rules (e.g., U.S. EPA, EU REACH) to avoid heavy fines.
• Automated coolant monitoring systems
  Real-time tracking of concentration, pH, and temperature enables auto-dosing and alerts—dramatically improving consistency in coolant management.
• How to measure coolant concentration
  Use a refractometer regularly: aim for 5–8% with emulsifiable oils, 3–5% with full synthetics.

Pro Tip: In CNC turning applications, low-viscosity formulations reduce backflow resistance. Pair them with a CNC coolant cleaner and coolant recycling system to maximize machine uptime and tool life.

6. Conclusion: Coolant as a Strategic Asset

The cooling system is far more than an optional add-on—it’s a strategic subsystem deeply embedded in your CNC machine’s performance DNA. From preventing basic failures to enabling high-precision, high-efficiency, and sustainable manufacturing, its value is undeniable.

For any shop, smart CNC machine coolant management isn’t just about saving money—it’s a proven lever for improving quality, uptime, and profitability. When you treat your CNC coolant system as an integral part of the machine ecosystem—not an afterthought—you unlock the full potential of your equipment.

In today’s cost- and quality-driven manufacturing landscape, effective coolant management is one of the highest-impact, lowest-cost ways to drive continuous improvement on the shop floor.
