Aluminum CNC Coolant Best Practices to Prevent Build-Up
Achieving superior results in aluminum CNC machining hinges on effective coolant management. Among all considerations, chip clearing must be the top priority—it directly prevents build-up and maintains clean surfaces. Equally important, proper lubrication and cooling protect cutting tools and significantly extend their service life. When residue accumulates, machining quality suffers and productivity slows. Fortunately, these issues are largely avoidable through correct coolant application and disciplined maintenance routines.
Key Takeaways
- Monitor coolant concentration daily, maintaining levels between 5% and 10% for optimal performance.
- Always use deionized water when mixing coolant to prevent mineral deposits and extend fluid life.
- Implement a tiered cleaning schedule—daily, weekly, and monthly tasks—to proactively prevent build-up.
- Select the right coolant type for your specific process: water-soluble, synthetic, and oil-based formulations each offer distinct advantages.
- Deploy advanced chip-clearing methods —high-pressure coolant systems can boost chip evacuation and reduce cycle times.
Why Build-Up Happens in Aluminum CNC Machining
Causes of Coolant Residue
Residue formation in aluminum machining stems from a combination of chemical and physical factors. Improper coolant concentration, tramp oil contamination, and incorrect mixing ratios are among the most frequent culprits. Additionally, hard water and excessive misting contribute significantly to sticky deposits. The table below outlines how each factor drives residue:
| CAUSE | DESCRIPTION |
|---|---|
| High concentration | Excess concentrate leaves behind sticky, gummy residues. |
| High tramp oil content | Hydraulic or way oils degrade emulsion stability and form sludge. |
| Incorrect mixing | Poor ratios compromise performance and increase residue risk. |
| Hard water | Calcium and magnesium ions precipitate as scale. |
| Heavy misting | Leads to coolant loss and surface tackiness. |
Beyond these, microbial growth and cross-contamination further exacerbate the problem. Tramp oils often originate from leaking machine components, while bacteria thrive in warm, nutrient-rich coolant sumps. Cross-contamination occurs when chips from dissimilar materials enter the system. Critically, the water quality used in coolant mixing plays a decisive role—contaminated water not only accelerates bacterial growth but also introduces health and corrosion risks.
Impact on Machining and Tools
Residue build-up undermines machining in multiple ways:
- Heat dissipation suffers, reducing machine efficiency and risking thermal distortion.
- Tool wear accelerates, shortening life and increasing replacement costs.
- Surface finish degrades as particles embed into soft aluminum.
- Health hazards emerge when neglected coolant becomes a breeding ground for harmful microbes.
- Maintenance expenses rise due to frequent cleaning and system repairs.
Tip: Most build-up issues can be avoided through consistent monitoring of coolant quality and adherence to proper mixing protocols. Proactive filtration and cleaning are far more cost-effective than reactive repairs.
Key Functions of CNC Coolant in Aluminum Machining
CNC coolant performs four essential roles in aluminum machining. Understanding these functions is crucial for maintaining machine uptime and part quality.

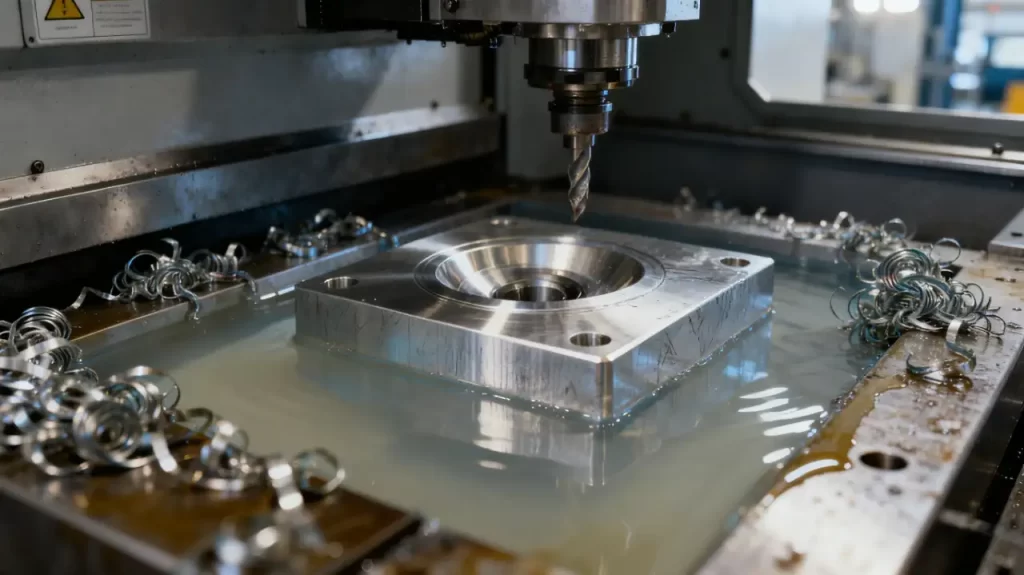

Chip Clearing Efficiency
Aluminum’s soft, gummy nature makes chip evacuation a persistent challenge. Without effective removal, chips weld to tools or scratch workpieces, ruining finishes. Coolant flushes chips from the cutting zone, preventing re-cutting and maintaining a clean interface. In fact, high-pressure systems can improve chip evacuation by up to 40%, while also reducing machining time by 12%. This directly translates to better surface quality and extended tool life.
| COOLING METHOD | PRESSURE/TEMPERATURE | CHIP EVACUATION IMPROVEMENT | TOOL LIFE IMPACT |
|---|---|---|---|
| High-pressure coolant | 70–100 bar | 40% less re-cutting | 12% faster cycle times |
| Cryogenic cooling | Liquid nitrogen | 35% better evacuation | 20% longer tool life |
Tip: Always verify coolant flow rate and nozzle alignment—optimal pressure is useless if delivery is misdirected.
Lubrication and Cooling
Friction and heat are the twin enemies of precision aluminum machining. Coolant combats both: lubrication minimizes friction to prevent aluminum from adhering to cutting edges, while cooling rapidly dissipates heat to maintain dimensional stability.
| FUNCTION | DESCRIPTION |
|---|---|
| Cooling | Removes heat from the cutting zone, preventing thermal distortion. |
| Lubrication | Reduces adhesion between tool and workpiece, avoiding built-up edge. |
When both functions operate in harmony, operators achieve smoother finishes and significantly longer tool life.
Corrosion and Scaling Prevention
Aluminum is prone to corrosion and scaling if unprotected. Water-based coolants with the correct concentration prevent these issues. Modern formulations include additives that form protective barriers: wetting agents enhance coverage, while sulfurized fatty oils and chlorinated compounds suppress welding and oxidation.
- Water-based coolants enable efficient heat transfer.
- Proper concentration prevents corrosion.
- Additives provide rust and scale resistance.
- Effective lubrication reduces wear-induced corrosion.
Ultimately, selecting the right coolant and monitoring its condition safeguards both equipment and output quality.
Choosing the Right CNC Coolant for Aluminum
Selecting the optimal coolant is a strategic decision that impacts chip control, tool life, and surface finish.
Water-Soluble vs. Synthetic vs. Oil-Based
Three primary coolant types dominate aluminum machining, each with trade-offs:
| COOLANT TYPE | ADVANTAGES | DISADVANTAGES |
|---|---|---|
| Water-Soluble | Excellent cooling, low cost ($2–5/gal diluted) | Prone to foaming, shorter sump life, requires biocides |
| Synthetic | Superior lubrication, 25–50% longer tool life | Higher cost ($10–20/gal), lower thermal conductivity |
| Oil-Based | Best surface finish, rust protection | Poor cooling, fire risk, difficult cleanup |
Water-soluble coolants remain popular for cost-sensitive operations. However, semi-synthetic or full-synthetic options are increasingly favored in high-precision shops. For example, an Ohio-based CNC facility doubled coolant life and reduced tool temperatures by 10% after switching to a semi-synthetic formulation.
Benefits of Deionized Water
Using deionized water is non-negotiable for stable, long-lasting coolant performance. Its purity prevents emulsion breakdown, mineral scaling, and galvanic corrosion—especially critical when machining mixed metals. Moreover, it drastically reduces microbial growth by eliminating nutrient sources.
Tip: Always test your water source. Even “softened” tap water can contain ions that degrade coolant performance over time.
High Oil Content Coolants for Milling
For demanding aluminum milling, high-oil-content coolants (e.g., straight oils or advanced emulsions) provide the extra lubricity needed to prevent chip welding. Products like Aquaglide 580 offer superior emulsion stability and tool life extension, delivering lower total cost of ownership despite higher upfront expense.
Note: Reserve these for high-load milling—never use them in operations requiring aggressive cooling, such as deep-pocket roughing.
Recommended Coolant Brands
| BRAND/MODEL | KEY STRENGTH | ALUMINUM-SUITABLE |
|---|---|---|
| QualiChem XTREME CUT 250C | High lubricity, excellent finish | ✅ |
| Hangsterfer’s S-500 CF | Low mist, precision machining | ✅ |
| Blaser Swisslube | Surface quality, machine protection | ✅ |
| Mobilcut 250 | Biodegradable, versatile | ✅ |
Tip: For tailored recommendations, consult technical experts at deli-cnc.com .
Effective Coolant Delivery Methods
Flood Coolant Systems
Flood cooling remains common for general aluminum work, particularly in open-area drilling. However, it struggles in deep cavities or high-speed milling, where chips accumulate and degrade surface quality (Ra can exceed 1.8 µm). Consequently, nozzle placement must be optimized to target chip hotspots.
Tip: Use Z-axis-following nozzles on modern machining centers for consistent coverage.

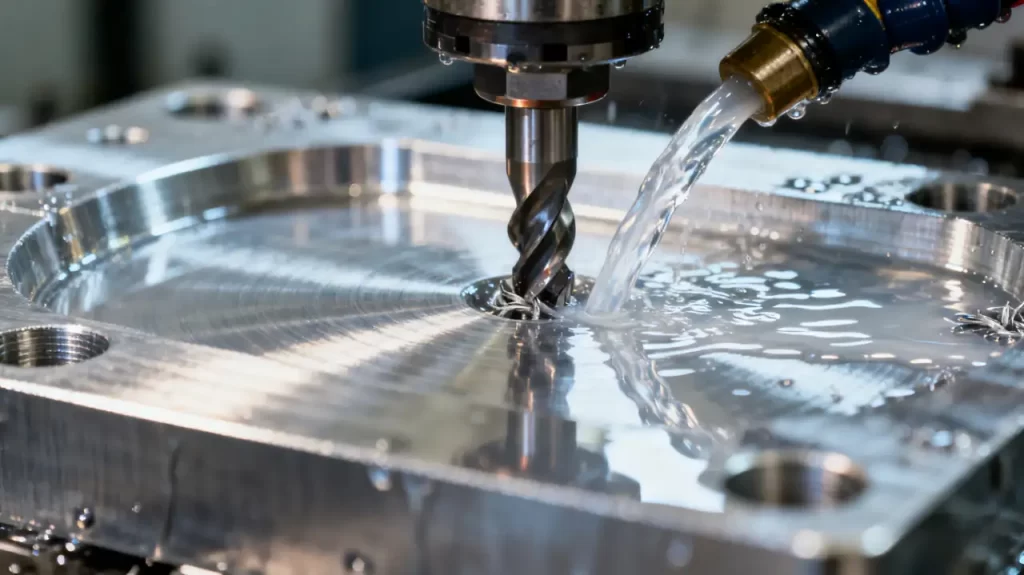

Through-Spindle Coolant (TSC)
TSC delivers coolant directly to the cutting edge through the spindle and tool. As a result, it achieves:
- 40% smoother surfaces (Ra 0.4 µm vs. 1.0 µm with flood)
- 50% longer tool life
- 30% faster chip evacuation
That said, TSC demands robust spindle seals and compatible tooling—and comes with higher maintenance costs.
Mist and Air Blast Options
For small parts or coolant-restricted environments, air blasts or minimal mist can outperform flood cooling in aluminum. Since chip clearing outweighs cooling in aluminum machining, these dry or near-dry methods are highly effective.
Tip: Ideal for prototyping or high-speed micro-milling where liquid interference is undesirable.
Best Practices for CNC Coolant Application
Proper Concentration and Mixing
Always mix coolant to manufacturer specifications:
| APPLICATION | RECOMMENDED TYPE | MIXING RATIO |
|---|---|---|
| Milling | Semi-synthetic | 5–12% |
| Drilling | Soluble oil | 70–90% water |
| Tapping | High-lubricity oil | 25% oil |
Never add water alone to top off—always use pre-mixed solution to maintain additive balance.
Daily Monitoring and Adjustment
- Daily: Measure concentration with a refractometer (target: 5–10%)
- Weekly: Check pH (ideal: 8.5–9.5)
- Every 6–12 months: Full coolant replacement (sooner if contaminated)
Tip: Log all readings—trends reveal degradation before visible symptoms appear.
Avoiding Over- and Under-Application
Balance is key. Excess coolant causes foaming and waste; too little leads to overheating. Adjust flow based on:
- Tool wear patterns
- Surface finish quality
- Chip morphology
Maintenance Routines to Prevent Build-Up
Daily, Weekly, and Monthly Cleaning
| FREQUENCY | TASK | PURPOSE |
|---|---|---|
| Daily | Skim tramp oil, check clarity | Prevent microbial growth |
| Weekly | Clean/replace filters | Remove fine contaminants |
| Monthly | Biocide treatment, inspect for rust | Maintain fluid stability |
Filtration and Chip Management
Install dual-stage filtration (coarse + fine) and pair with an oil skimmer. Systems like the MIDACO Automatic Coolant Cleaner filter particles down to 10 µm, dramatically extending coolant life.
Coolant Replacement Protocol
- Add system cleaner (1–2%) 48 hours before change
- Circulate, then drain completely
- Flush with alkaline cleaner (2%)
- Rinse thoroughly
- Refill with fresh coolant at slightly elevated concentration
Troubleshooting Persistent Build-Up
Warning Signs
- Sour or “rotten egg” odor
- Cloudy fluid or surface slime
- Accelerated tool wear
- Foaming that won’t dissipate
When to Call Professionals
Seek expert help if you observe:
- Recurring microbial contamination despite treatment
- Persistent flow restrictions
- Inability to stabilize pH or concentration
Final Insight: Consistent chip management, intelligent coolant selection, and disciplined maintenance form the triad of success in aluminum CNC machining. For expert guidance, trusted suppliers like deli-cnc.com offer data-driven solutions tailored to your production needs.
FAQ
What is the best coolant concentration for aluminum CNC machining?
5–10%, depending on operation type. Always follow manufacturer guidelines.
How often should you replace CNC coolant?
Every 6–12 months, or immediately upon signs of contamination (odor, cloudiness, pH < 8.0).
Can you use tap water?
No. Use deionized or distilled water to prevent scaling and microbial growth.
What indicates coolant build-up?
Sour smell, sludge, foaming, dull tools, or poor surface finish.
How to prevent chip accumulation?
Direct high-pressure coolant at the cut zone or use air blast for dry machining.
